ATTEND’s Mini FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, Mini FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The Mini FAKRA connectors and cable assemblies offering emphasize durability, compliance with automotive standards such as ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity in space-constrained automotive and industrial applications.
-
Frequency range: up to 15 GHz
-
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
-
Robust plastic housings provide high resistance to harsh automotive environments
-
13 color and mechanical coding options plus 1 neutral variant to prevent mismating
-
Mini FAKRA connectors are up to 80% smaller than standard FAKRA, ideal for compact, high-density automotive electronics
-

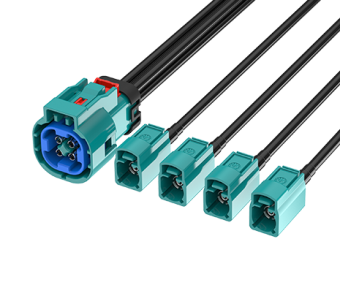

Supports single, dual, and quad connector configurations to maximize PCB space and installation flexibility
-

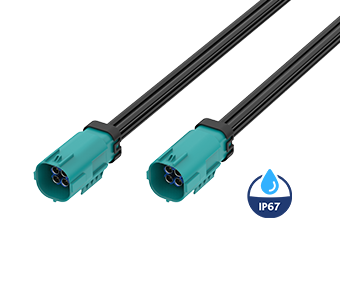

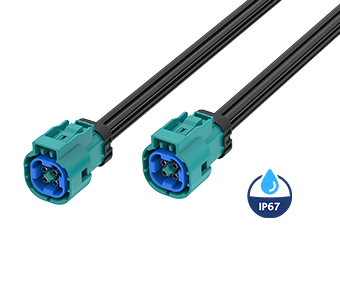

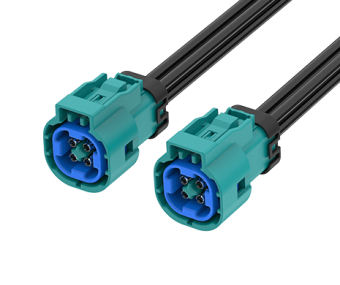

Mini FAKRA cable assemblies can be customized to meet specific application requirements
-
Operating temperature range: −40°C to +105°C
APPLICATIONS
-
Automotive Telematics and Infotainment Systems
-
Advanced Driver Assistance Systems (ADAS)
-
GPS, Satellite Radio, and Antenna Connections
-
Industrial Wireless Communication Networks
-
IIoT Devices in Harsh Environments
-
V2X Communication Systems
-
Industrial Automation
-
Unmanned Transport Systems (AGVs/AMRs)
-
Intelligent Transportation Systems
-
Agricultural Machinery
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Plug | P/N | RAL No. Color | Application (Europe) | Application (USCAR) |
| A |  | 230D-PSA00 | 9005 Jet Black | Radio without phantom supply | |
| B |  | 230D-PSB00 | 9001 Cream | Radio with phantom supply | |
| C |  | 230D-PSC00 | 5005 Signal Blue | GPS / Navigation | GPS |
| D |  | 230D-PSD00 | 4004 Claret Violet | GSM | |
| E |  | 230D-PSE00 | 6002 Leaf Green | TV / SDARS Terrestrial | |
| F |  | 230D-PSF00 | 8011 Nut Brown | TV / SDARS Terrestrial / Camera | |
| G |  | 230D-PSG00 | 7031 Blue Gray | Remote Keyless Entry | SDARS Terrestrial |
| Code | Plug | P/N | RAL No. Color | Application (Europe) | Application (USCAR) |
| H |  | 230D-PSH00 | 4003 Heather Violet | GPS / Navigation | |
| J |  | 230D-PSJ00 | 1001 Beige | Remote | Bluetooth / VPM |
| K |  | 230D-PSK00 | 1027 Curry | Diversity radio | SDARS Satellite |
| N |  | 230D-PSN00 | 6019 Pastel Green | Undefined | DSRC / VPM |
| Z |  | 230D-PSZ00 | 5021 Water Blue | Universal (Neutral) Code | |
| Current Rating | 1A per pin |
|---|---|
| Voltage Rating | AC335Vrms |
| Contact Resistance | 15mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 800VAC |
| Impedance | 50Ω |
| Frequency | 9.0GHz |
| Durability | ≥25 Cycle |
|---|---|
| Engagement Force | ≤75N |
| Retention Force Latch | ≥110N |
| Coding Efficiency | ≥200N |
| Operating temperature range | -40°C ~ +105°C |
|---|---|
| Storage temperature range | -40°C ~ +105°C |
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|

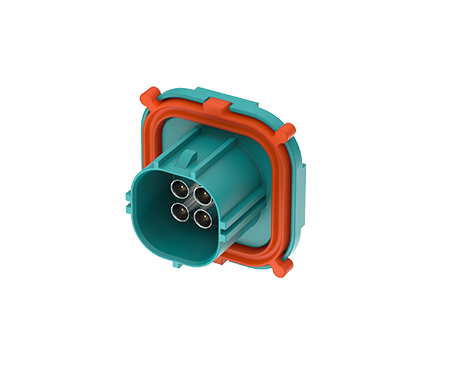

| Drawing | 230D-PSX01 | 917 KB | PDF: Drawing |  |
| 3D | 230D-PSX01 | 1136 KB | RAR: 3D File | |
