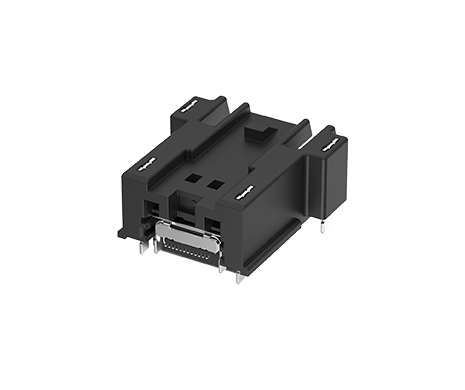

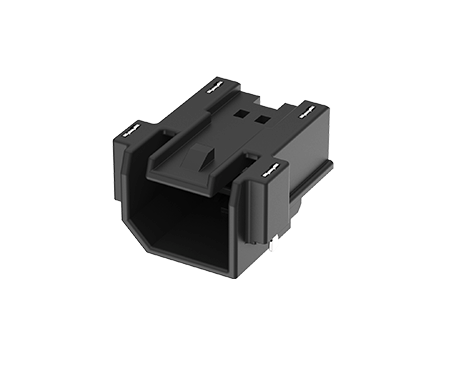

Automotive USB4 Type C Receptacle, Mid Mount, 30u"
217C-AG06
Automotive USB4 type C Receptacle, Mid Mount w/Cover, 30u"
ATTEND’s Automotive USB Type C Connectivity System delivers robust power, high-speed data, and Automotive-grade durability to meet the needs of automation, intelligent transport, AGVs, transport vehicles, diagnostics and Automotive aftermarket upgrades. Designed to meet the stringent requirements of USCAR-2 standard design, it performs reliably in harsh environments.
ATTEND’s Automotive USB Type C Connectivity System delivers robust power, high-speed data, and Automotive-grade durability to meet the needs of automation, intelligent transport, AGVs, transport vehicles, diagnostics and Automotive aftermarket upgrades. Designed to meet the stringent requirements of USCAR-2 standard design, it performs reliably in harsh environments.
Share:
MAIN FEATURES
A-
Compliant with USB4 Gen3 standard, supporting data transfer rates up to 40 Gbps.
-
Supports PD 3.1 standard up to 5A/48V (240W) power delivery
-
USCAR-2 compliant design ensures reliable connectivity under severe vibration and shock environments.
-
Constructed with UL94 V-0 high-temp plastics and gold-plated contacts for reliability.
-
TPE cable jacket offers resistance to oils, acids, and chemicals.
-
Wide operation temperature range from -40°C to +105°C.
APPLICATIONS
-
In-Vehicle Infotainment
-
Rear Seat Entertainment
-
Industrial HMI Panels
-
Intelligent Transport Systems
-
Autonomous Vehicles
-
Embedded USB-C Modules
-
USB Charger Module
-
USB Media Hub
SPECIFICATION
| Current Rating | 5A |
|---|---|
| Voltage Rating | 48V |
| Insulation Resistance | 100MΩ Min. |
| Operating temperature range | -40°C~+105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217C-AG06 | 125 KB | PDF: Drawing |  |
| 3D | 217C-AG06 | 600 KB | RAR: 3D File | |
