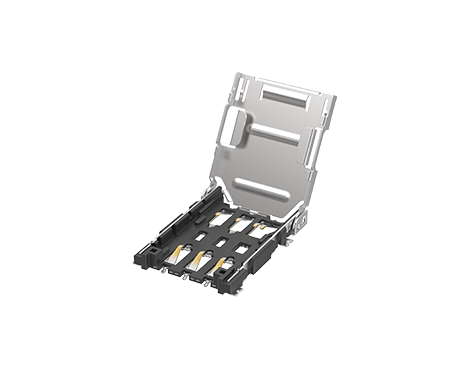

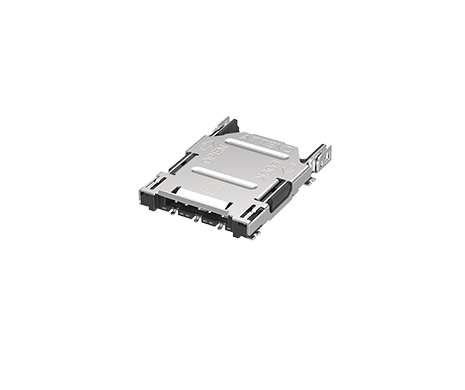

Nano SIM Socket, Hinge Type, 6 Pin w/CD 10u"

115V-AA03

Nano SIM Socket, Hinge Type, 6 Pin w/CD 10u", Reel

ATTEND’s Nano SIM Card Socket is designed for reliable connections in compact devices. The hinge mechanism allows easy insertion and secure card retention, ensuring stable performance in mobile devices, IoT systems, and industrial equipment. With 10u'' gold plating for excellent durability and corrosion resistance, this connector is ideal for demanding environments. It’s the perfect choice for applications requiring space efficiency and robust performance.
Share:

MAIN FEATURES

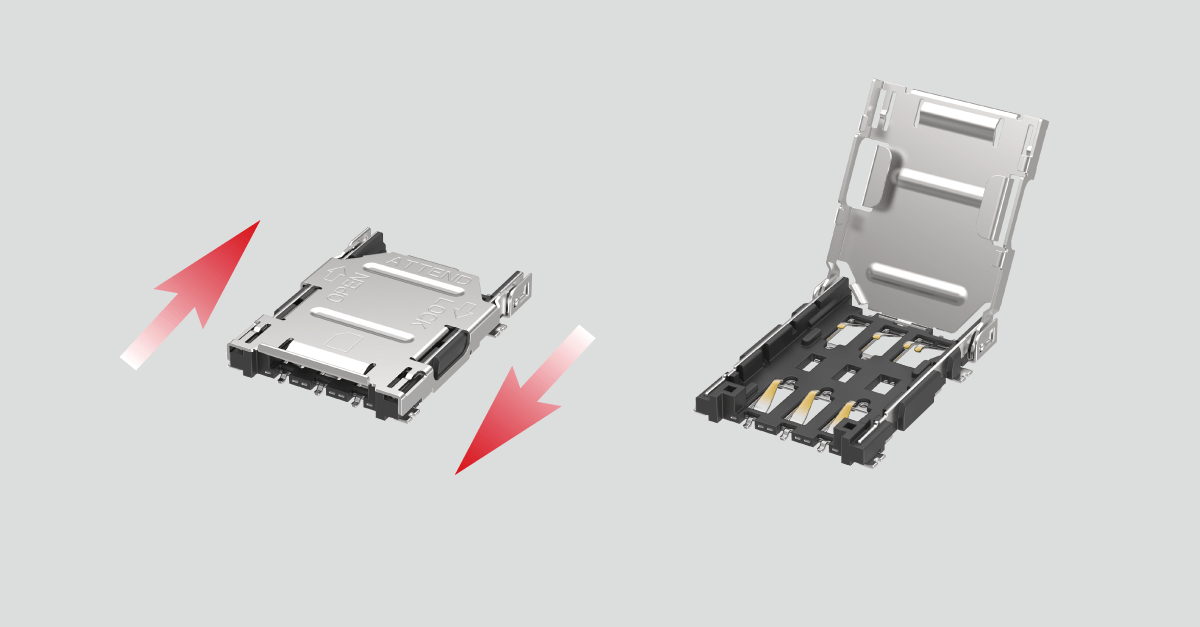

115V-AA03mainfeature

  • 10µ" gold-plated contacts for stable performance.

  • Operating temperature –40°C to +105°C for harsh environments.

  • 5,000-cycle durability for long-term reliability.

  • Metal shaft and holder arm provide enhanced mechanical strength.

  • Slide-back eject design with 110° opening and built-in card detection (CD)

APPLICATIONS

train applications

  • Intelligent Transportation System

  • In-Vehicle Computer

  • Infrastructure for Commercial IoT

  • Industrial Automation Equipment

  • Smart City Sensing and Monitoring Devices

SPECIFICATION

ELECTRICAL
Current Rating0.5A per pin
Voltage Rating10V DC
Contact ResistanceInitial 50mΩ, after 100mΩ Max.
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Terminal Durability5,000 Cycle
Contact Normal Force0.3N min. per pin
Open & Lock Durability100 cycles
Open & Lock Force1.5N ~ 20N with card
ENVIRONMENTAL
Operating temperature range-40°C~+105°C
Storage temperature range-40°C~+105°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115V-AA03871 KBPDF: DrawingDownload
3D115V-AA03570 KBRAR: 3D FileDownload
