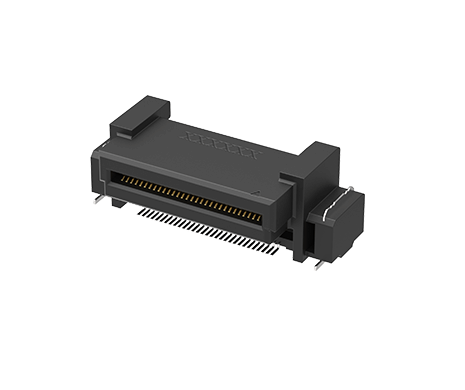

Board to Board Floating Plug, Male, 60PIN, R/A
320A-P060R00
Board to Board Floating Plug, Male, 60PIN, R/A

ATTEND’s Floating Board-to-Board Connectors provide high-performance interconnect solutions with a built-in floating mechanism to absorb X- and Y-axis misalignment. This elastic flexibility ensures stable, high-speed signal transmission under vibration, shock, or thermal expansion.

Engineered for demanding environments, they deliver reliable connectivity for automotive, industrial, and embedded computing applications.
INQURY DOWNLOAD
Share:
MAIN FEATURES
High-Speed Board to Board Floating Connector

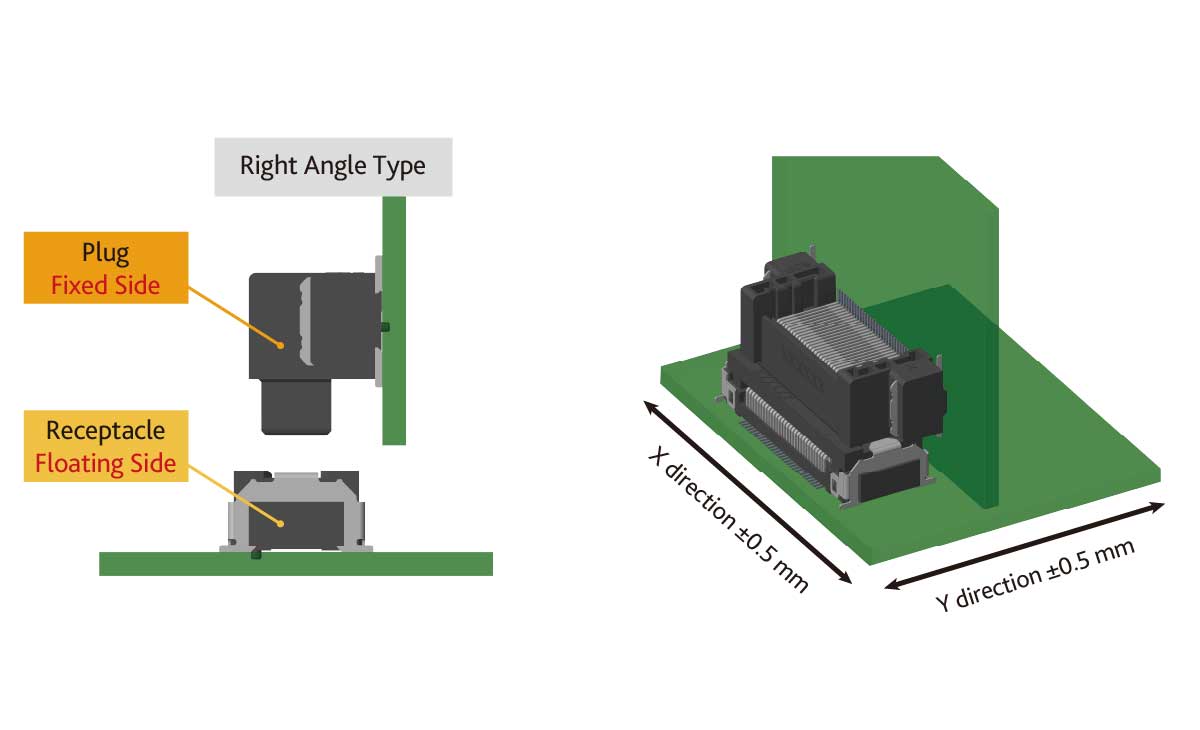

  • The floating design compensates for misalignment in X and Y directions up to ±0.5mm.
  • Supports high-speed data transmission up to 8GTs (PCIe 3.0).
  • Supports 0.5 mm narrow pitch with 60/80/100 contact options.
  • Elastic structure provides flexibility and reduces mechanical stress during assembly.
  • Withstands vibration and shock for reliable performance in harsh environments.
  • Ensures stable contact through compliant terminal design.
  • Wide operation temperature range from -40°C to +105°C.

APPLICATIONS

APPLICATIONSA
  • Industrial Automation & Robotics
  • Automotive Electronics
  • Measurement & Test Equipment
  • AI & Edge Computing Modules
  • Railway & Transportation Systems
  • Medical Devices

SPECIFICATION
ELECTRICAL
Current Rating0.4A Max. per pin
Contact Resistance80mΩ Max. initial,
ΔR<20 mΩ Max. finial
Insulation Resistance100MΩ Min.
Withstanding Voltage200V AC
MECHANICAL
Durability100 Cycles
Mating Force29.4 N Max.
Un-mating Force3 N Min.
ENVIRONMENTAL
Operating temperature range-40°C ~105°C
Storage temperature range-40°C ~105°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing320A-P060R00237 KBPDF: DrawingDownload
3D320A-P060R001283 KBRAR: 3D FileDownload
Datasheet320A Series Spec423 KBPDF:SpecDownload
