Pogo Pin Water proof Type, 5Pin Pitch 2.5mm
303C-541219-25-05

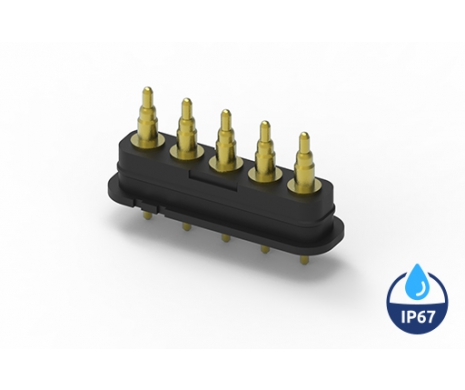

Pogo Pin Water proof Type, 5Pin Pitch 2.5mm T/L 6.6mm W/H 5.4mm DIP w/o Cap
ATTEND’s IP67 Waterproof Pogo Pin connectors feature gold-plated surfaces and a durable structural design, offering excellent current transmission and protection against water and dust ingress. Designed for rugged environments, they ensure long-term reliability in outdoor devices, industrial equipment, and testing applications, delivering innovative connection solutions for competitive designs.
ATTEND’s IP67 Waterproof Pogo Pin connectors feature gold-plated surfaces and a durable structural design, offering excellent current transmission and protection against water and dust ingress. Designed for rugged environments, they ensure long-term reliability in outdoor devices, industrial equipment, and testing applications, delivering innovative connection solutions for competitive designs.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
ATTEND’s Pogo Pin connectors are engineered for superior performance and reliability, making them ideal for various applications such as consumer electronics, industrial equipment, medical devices, and testing interfaces.
- High Stroke: Offers excellent flexibility, ensuring reliable connections even under dynamic conditions.
- High Durability: Built to endure thousands of usage cycles, maintaining optimal performance over time.
- Long Lifetime: Crafted with premium materials to guarantee extended operational longevity.
- Ease of Attaching: Simplified design for quick and secure installation.
- Stable Current Flow: Ensures consistent and efficient power and signal transmission.
Applications:
- Antenna Systems
- Board-to-Board Connections
- Medical Devices
- Tracking Devices
- Portable Electronics
| Product Comparison Overview | ||||
| Variation | Pin Count | Working Height | Current Rating | Voltage Rating |
| Single | 1 Pin | 2.6-6.8mm | 1-2A | 12-30V |
| Multiple | 2-4 Pin | 3.9-7.0mm | 1-2A | 12-30V |
| Magnetic&Waterproof | 2-5 Pin | 4.0-5.5mm | 2A | 5-12V |
| Magnetic | 2-4 Pin | 4.0-6.0mm | 1-3A | 5-12V |
SPECIFICATION
| Current Rating | 2A per pin |
|---|---|
| Voltage Rating | 12V AC/DC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Pin Force | 1.08N±0.25N at Stroke 1.0mm |
|---|---|
| Durability | 20,000 Cycles |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Storage temperature range | -40°C~+85°C |
| Waterproof Level | IPX7 |
| Recommended IR Reflow Temperature | 250°C, 10Sec |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 303C-541219-25-05 | 189 KB | PDF: Drawing |  |
| 3D | 303C-541219-25-05 | 31 KB | RAR: 3D File | |
| Datasheet | 303C-541219-25-05 Spec | 369 KB | PDF:Spec | |
| Drawing | 303-0001 | 59 KB | PDF: Drawing | |
