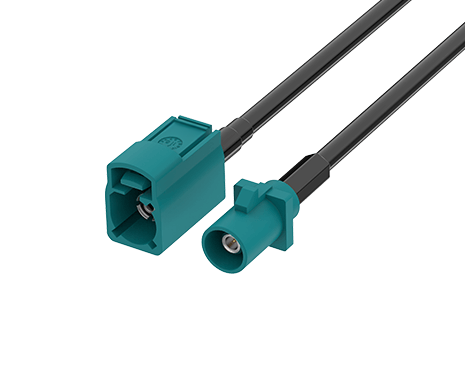

FAKRA Jack to Plug Straight Cable, L=100 CM
FR-1J1P-100X01
FAKRA Jack to Plug Straight Cable, L=100 CM

ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
Share:
MAIN FEATURES
Truck applications

  • Frequency Range: DC to 6 GHz

  • Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards

  • Robust plastic housings provide high resistance to harsh automotive environments

  • 13 color and mechanical coding options plus 1 neutral variant to prevent mismating

  • FAKRA cable assemblies can be customized for different applications to meet specific customer requirements

  • Operating Temperature Range: −40°C to +105°C

APPLICATIONS

Agricultural Vehicles
  • Automotive Telematics and Infotainment Systems
  • Advanced Driver Assistance Systems (ADAS)
  • GPS, Satellite Radio, and Antenna Connections
  • Industrial Wireless Communication Networks
  • IIoT Devices in Harsh Environments
  • V2X Communication Systems
  • Industrial Automation
  • Unmanned Transport Systems (AGVs/AMRs)
  • Intelligent Transportation Systems
  • Agricultural Machinery


APPLICATION SCENARIOS





Autonomous Mobile Robot


FAKRA JACK CODE OPTIONS

CodeJackRAL No.
Color		Application
(Europe)		Application
(USCAR)
AFakra jack code9005
Jet Black		Radio without phantom supply
BFakra jack code9001
Cream		Radio with phantom supply
CFakra jack code5005
Signal Blue		GPS / NavigationGPS
DFakra jack code4004
Claret Violet		GSM
EFakra jack code6002
Leaf Green		TV / SDARS Terrestrial
FFakra jack code8011
Nut Brown		TV / SDARS Terrestrial / Camera
GFakra jack code7031
Blue Gray		Remote Keyless EntrySDARS Terrestrial
CodeJackRAL No.
Color		Application
(Europe)		Application
(USCAR)
HFakra jack code4003
Heather Violet		GPS / Navigation
IFakra jack code1001
Beige		RemoteBluetooth / VPM
K1027
Curry		Diversity radioSDARS Satellite
Lfakra jack code3002
Carmine Red		UndefinedVPM
Mfakra jack code2003
Pastel Orange		UndefinedRKE / TPMS
NFakra jack code6019
Pastel Green		UndefinedDSRC / VPM
ZFakra jack code5021
Water Blue		Universal (Neutral) Code


FAKRA PLUG CODE OPTIONS

CodePlugRAL No.
Color		Application
(Europe)		Application
(USCAR)
A9005
Jet Black		Radio without phantom supply
B9001
Cream		Radio with phantom supply
C5005
Signal Blue		GPS / NavigationGPS
D4004
Claret Violet		GSM
E6002
Leaf Green		TV / SDARS Terrestrial
F8011
Nut Brown		TV / SDARS Terrestrial / Camera
G7031
Blue Gray		Remote Keyless EntrySDARS Terrestrial
CodePlugRAL No.
Color		Application
(Europe)		Application
(USCAR)
H4003
Heather Violet		GPS / Navigation
I1001
Beige		RemoteBluetooth / VPM
K1027
Curry		Diversity radioSDARS Satellite
L3002
Carmine Red		UndefinedVPM
M2003
Pastel Orange		UndefinedRKE / TPMS
N6019
Pastel Green		UndefinedDSRC / VPM
Z5021
Water Blue		Universal (Neutral) Code

SPECIFICATION
MECHANICAL
StyleFakra to Fakra
1st ConnectorFakra Jack
1st Contact GenderFemale
2nd ConnectorFakra Plug
2nd Contact GenderMale
Cable ColorBlack
MECHANICAL
Cable ODapprox. 2.5 mm
Cable TypeRTK 031 Coaxial cable
ComplianceISO 20860-1/2, SAE/USCAR-2, RoHS
Length100 cm
Mating Cycles≥ 25
ELECTRICAL
Coding14 color/mechanical
Data RateUp to 8 Gbps
Frequency RangeDC to 6 GHz
Impedance50Ω
ENVIRONMENTAL
Operating temperature range-40°C to +105°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
DrawingFR-1J1P-100X01269 KBPDF: DrawingDownload
