Mini FAKRA A STR Jack–STR Jack Cable 100cm
FR-1J1J-100X03

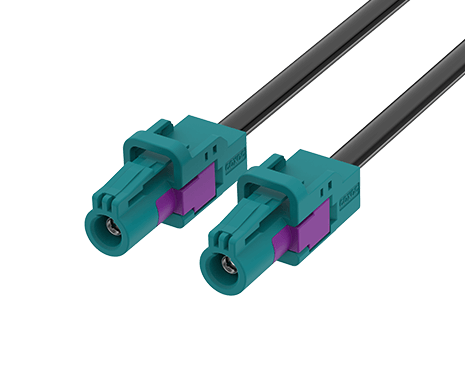

Mini FAKRA, Type A STR Jack to Jack Cable, L=100 CM
ATTEND’s Mini FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, Mini FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The Mini FAKRA connectors and cable assemblies offering emphasize durability, compliance with automotive standards such as ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity in space-constrained automotive and industrial applications.
ATTEND’s Mini FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, Mini FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The Mini FAKRA connectors and cable assemblies offering emphasize durability, compliance with automotive standards such as ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity in space-constrained automotive and industrial applications.
Share:
MAIN FEATURES
- Frequency range: up to 15 GHz
- Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
- Robust plastic housings provide high resistance to harsh automotive environments
- 13 color and mechanical coding options plus 1 neutral variant to prevent mismating

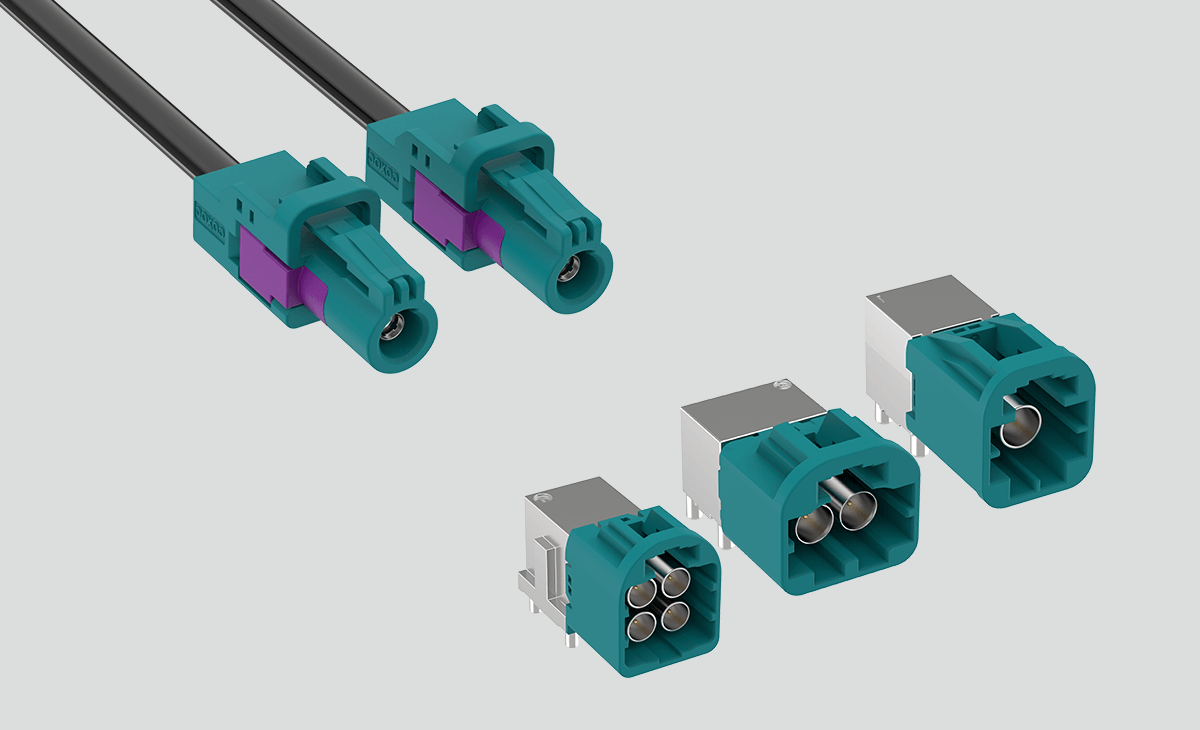

- Mini FAKRA connectors are up to 80% smaller than standard FAKRA, ideal for compact, high-density automotive electronics
- Supports single, dual, and quad connector configurations to maximize PCB space and installation flexibility
- Mini FAKRA cable assemblies can be customized to meet specific application requirements
- Operating temperature range: −40°C to +105°C
APPLICATIONS
- Automotive Telematics and Infotainment Systems
- Advanced Driver Assistance Systems (ADAS)
- GPS, Satellite Radio, and Antenna Connections
- Industrial Wireless Communication Networks
- IIoT Devices in Harsh Environments
- V2X Communication Systems
- Industrial Automation
- Unmanned Transport Systems (AGVs/AMRs)
- Intelligent Transportation Systems
- Agricultural Machinery
APPLICATION SCENARIOS
MINI FAKRA TYPE A JACK CODE OPTIONS
| Code | Plug | RAL No. Color | Application (Europe) | Application (USCAR) |
| A |  | 9005 Jet Black | Radio without phantom supply | |
| B |  | 9001 Cream | Radio with phantom supply | |
| C |  | 5005 Signal Blue | GPS / Navigation | GPS |
| D |  | 4004 Claret Violet | GSM | |
| E |  | 6002 Leaf Green | TV / SDARS Terrestrial | |
| F |  | 8011 Nut Brown | TV / SDARS Terrestrial / Camera | |
| Code | Plug | RAL No. Color | Application (Europe) | Application (USCAR) |
| G |  | 7031 Blue Gray | Remote Keyless Entry | SDARS Terrestrial |
| H |  | 4003 Heather Violet | GPS / Navigation | |
| J |  | 1001 Beige | Remote | Bluetooth / VPM |
| K |  | 1027 Curry | Diversity radio | SDARS Satellite |
| Z |  | 5021 Water Blue | Universal (Neutral) Code | |
SPECIFICATION
| Style | Mini Fakra Type A to Fakra |
|---|---|
| 1st Connector | Mini Fakra Jack |
| 1st Contact Gender | Female |
| 2nd Connector | Fakra Jack |
| 2nd Contact Gender | Female |
| Cable Color | Black |
| Cable OD | approx. 2.5 mm |
|---|---|
| Cable Type | RTK 031 Coaxial cable |
| Compliance | ISO 20860-1/2, SAE/USCAR-2, RoHS |
| Length | 100 cm |
| Mating Cycles | ≥ 25 |
| Coding | 11 color/mechanical |
|---|---|
| Data Rate | Up to 8 Gbps |
| Frequency Range | DC to 6 GHz |
| Impedance | 50Ω |
| Operating temperature range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | FR-1J1J-100X03 | 112 KB | PDF: Drawing |  |
