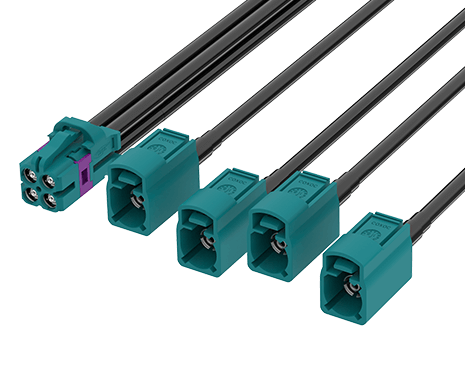

Mini FAKRA A Jack(2x2)–FAKRA Jack x4 Cable 100cm
FR-1J4J-100X02
Mini FAKRA Type A Jack(2x2) to FAKRA Jack x4 Cable, L=100 CM

ATTEND’s Mini FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, Mini FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The Mini FAKRA connectors and cable assemblies offering emphasize durability, compliance with automotive standards such as ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity in space-constrained automotive and industrial applications.
Share:
MAIN FEATURES
Mini FAKRA Connectors

  • Frequency Range DC to 6 GHz (standard FAKRA), up to 15 GHz for Mini-FAKRA.

  • Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards.

  • Robust plastic housings provide high resistance to harsh automotive environments.

  • 13 color and mechanical coding options plus 1 neutral variant to prevent mismating.

  • Mini FAKRA connectors are Up to 80% smaller than standard FAKRA connectors, ideal for compact, high-density automotive electronics.

  • Mini FAKRA supports single, dual, and quad connector configurations for maximizing PCB real estate and installation flexibility.

  • FAKRA and Mini FAKRA cable Assemblies  can be customized for different applications to meet specific customer requirements.

  • Operating Temperature Range:−40°C to +105°C

APPLICATIONS

Agricultural Vehicles
  • Automotive Telematics and Infotainment Systems
  • Advanced Driver Assistance Systems (ADAS)
  • GPS, Satellite Radio, and Antenna Connections
  • Industrial Wireless Communication Networks
  • IIoT Devices in Harsh Environments
  • V2X Communication Systems
  • Industrial Automation
  • Unmanned Transport Systems (AGVs/AMRs)
  • Intelligent Transportation Systems
  • Agricultural Machinery


APPLICATION SCENARIOS






Mini FAKRA Type B Jack (2*2) CODE OPTIONS

CodePlugRAL No.
Color		Application
(Europe)		Application
(USCAR)
AMini FAKRA connector coding guide9005
Jet Black		Radio without phantom supply
BMini FAKRA connector coding guide9001
Cream		Radio with phantom supply
CMini FAKRA connector coding guide5005
Signal Blue		GPS / NavigationGPS
DMini FAKRA connector coding guide4004
Claret Violet		GSM
CodePlugRAL No.
Color		Application
(Europe)		Application
(USCAR)
EMini FAKRA connector coding guide6002
Leaf Green		TV / SDARS Terrestrial
FMini FAKRA connector coding guide8011
Nut Brown		TV / SDARS Terrestrial / Camera
ZMini FAKRA connector coding guide5021
Water Blue		Universal (Neutral) Code

FAKRA Jack CODE OPTIONS

CodePlugRAL No.
Color		Application
(Europe)		Application
(USCAR)
AFAKRA connector coding guide9005
Jet Black		Radio without phantom supply
BFAKRA connector coding guide9001
Cream		Radio with phantom supply
CFAKRA connector coding guide5005
Signal Blue		GPS / NavigationGPS
DFAKRA connector coding guide4004
Claret Violet		GSM
CodePlugRAL No.
Color		Application
(Europe)		Application
(USCAR)
EFAKRA connector coding guide6002
Leaf Green		TV / SDARS Terrestrial
FFAKRA connector coding guide8011
Nut Brown		TV / SDARS Terrestrial / Camera
ZFAKRA connector coding guide5021
Water Blue		Universal (Neutral) Code

SPECIFICATION
MECHANICAL
StyleMini Fakra Type B(2x2) to Fakra x4
1st ConnectorMini Fakra  Type B (2x2)
1st Contact GenderFemale
2nd ConnectorFakra Jack x 4
2nd Contact GenderFemale
Cable ColorBlack
MECHANICAL
Cable ODapprox. 2.5 mm
Cable TypeRTK 031 Coaxial cable
ComplianceISO 20860-1/2, SAE/USCAR-2, RoHS
Length100 cm
Mating Cycles≥ 25
ELECTRICAL
Coding7  color/mechanical
Data RateUp to 8 Gbps
Frequency RangeDC to 6 GHz
Impedance50Ω
ENVIRONMENTAL
Operating temperature range-40°C to +105°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
DrawingFR-1J4J-100X02228 KBPDF: DrawingDownload
