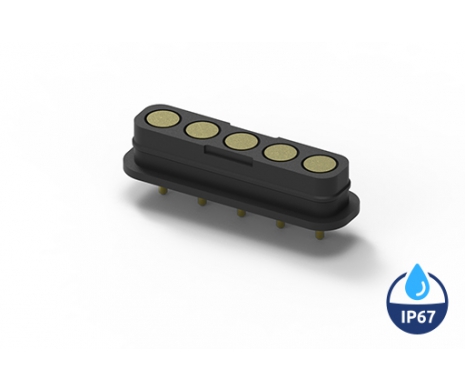

Pogo Pin Water proof Contact Type, 5Pin Pitch 2.5mm
303C-C3018-25-05
Pogo Pin Water proof Contact Type, 5Pin Pitch 2.5mm T/L 3.0mm DIP w/o Cap

A pogo pin or spring-loaded pin is a type of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity.

Pogo pin combines the advantages of fine pitch, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications.
Share:
MAIN FEATURES
*
Conclusion:
  • High Stroke
  • High Durability
  • Long Lifetime
  • Ease of Attaching
  • Stable Current Flow
*
Application:
  • Antenna
  • Board To Board Connection
  • Medical Device
  • Tracking Device
  • Portable Device
*
SPECIFICATION
ELECTRICAL
Current Rating2A per pin
Voltage Rating12V AC/DC
Contact Resistance50mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability20,000 Cycles
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
Waterproof LevelIPX7
SOLDER ABILITY
Recommended IR Reflow Temperature250°C, 10Sec
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing303C-C3018-25-05182 KBPDF: DrawingDownload
3D303C-C3018-25-0526 KBRAR: 3D FileDownload
Datasheet303C-C3018-25-05 Spec333 KBPDF:SpecDownload
