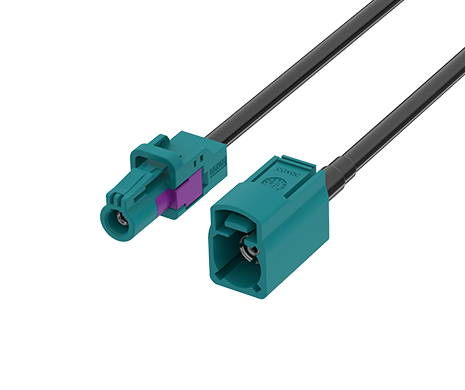

Mini FAKRA A Jack–FAKRA Jack Straight 100cm

FR-1J1J-100X04

Mini FAKRA Type A Jack to FAKRA Jack STR Cable, L=100 CM

ATTEND’s Mini FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, Mini FAKRA products ensure secure, consistent signal transmission for critical communication systems.

The Mini FAKRA connectors and cable assemblies offering emphasize durability, compliance with automotive standards such as ISO 20860-1/2, SAE/USCAR-2, and USCAR-17, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity in space-constrained automotive and industrial applications.

MAIN FEATURES

Frequency range: up to 15 GHz
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
Robust plastic housings provide high resistance to harsh automotive environments
13 color and mechanical coding options plus 1 neutral variant to prevent mismating
Mini FAKRA connectors are up to 80% smaller than standard FAKRA, ideal for compact, high-density automotive electronics
Supports single, dual, and quad connector configurations to maximize PCB space and installation flexibility
Mini FAKRA cable assemblies can be customized to meet specific application requirements
Operating temperature range: −40°C to +105°C

APPLICATIONS

Automotive Telematics and Infotainment Systems
Advanced Driver Assistance Systems (ADAS)
GPS, Satellite Radio, and Antenna Connections
Industrial Wireless Communication Networks
IIoT Devices in Harsh Environments
V2X Communication Systems
Industrial Automation
Unmanned Transport Systems (AGVs/AMRs)
Intelligent Transportation Systems
Agricultural Machinery

APPLICATION SCENARIOS

Mini FAKRA Type A Jack CODE OPTIONS

Code	Plug	RAL No. Color	Application (Europe)	Application (USCAR)
A		9005 Jet Black	Radio without phantom supply
B		9001 Cream	Radio with phantom supply
C		5005 Signal Blue	GPS / Navigation	GPS
D		4004 Claret Violet	GSM
E		6002 Leaf Green	TV / SDARS Terrestrial

Code	Plug	RAL No. Color	Application (Europe)	Application (USCAR)
F		8011 Nut Brown	TV / SDARS Terrestrial / Camera
G		7031 Blue Gray	Remote Keyless Entry	SDARS Terrestrial
H		4003 Heather Violet	GPS / Navigation
J		1001 Beige	Remote	Bluetooth / VPM
K		1027 Curry	Diversity radio	SDARS Satellite
Z		5021 Water Blue	Universal (Neutral) Code

FAKRA Plug CODE OPTIONS

Code	Plug	RAL No. Color	Application (Europe)	Application (USCAR)
A		9005 Jet Black	Radio without phantom supply
B		9001 Cream	Radio with phantom supply
C		5005 Signal Blue	GPS / Navigation	GPS
D		4004 Claret Violet	GSM
E		6002 Leaf Green	TV / SDARS Terrestrial
F		8011 Nut Brown	TV / SDARS Terrestrial / Camera
G		7031 Blue Gray	Remote Keyless Entry	SDARS Terrestrial

Code	Plug	RAL No. Color	Application (Europe)	Application (USCAR)
H		4003 Heather Violet	GPS / Navigation
I		1001 Beige	Remote	Bluetooth / VPM
K		1027 Curry	Diversity radio	SDARS Satellite
L		3002 Carmine Red	Undefined	VPM
M		2003 Pastel Orange	Undefined	RKE / TPMS
N		6019 Pastel Green	Undefined	DSRC / VPM
Z		5021 Water Blue	Universal (Neutral) Code

SPECIFICATION

MECHANICAL
Style	Mini Fakra to Fakra
1st Connector	Mini Fakra Jack
1st Contact Gender	Female
2nd Connector	Fakra Jack
2nd Contact Gender	Female
Cable Color	Black

MECHANICAL
Cable OD	approx. 2.5 mm
Cable Type	RTK 031 Coaxial cable
Compliance	ISO 20860-1/2, SAE/USCAR-2, RoHS
Length	100 cm
Mating Cycles	≥ 25

ELECTRICAL
Coding	11 color/mechanical
Data Rate	Up to 8 Gbps
Frequency Range	DC to 6 GHz
Impedance	50Ω

ENVIRONMENTAL
Operating temperature range	-40°C to +105°C

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE	DOWNLOAD
Drawing	FR-1J1J-100X04	166 KB	PDF: Drawing
