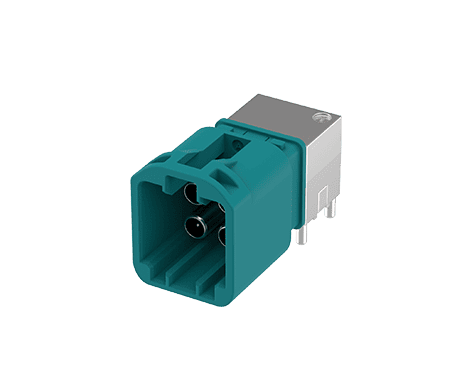

Mini FAKRA Plug, R/A, 2x2, B Type, Nose 12/6 O'clock
230D-PXX01
Mini FAKRA Plug, R/A, 2x2 Port, B Type, Nose 12 or 6 O'clock
ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
Share:
MAIN FEATURES
- Frequency Range DC to 6 GHz (standard FAKRA), up to 15 GHz for Mini-FAKRA.
- Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards.
- Robust plastic housings provide high resistance to harsh automotive environments.
- 13 color and mechanical coding options plus 1 neutral variant to prevent mismating.
- Mini FAKRA connectors are Up to 80% smaller than standard FAKRA connectors, ideal for compact, high-density automotive electronics.
- Mini FAKRA supports single, dual, and quad connector configurations for maximizing PCB real estate and installation flexibility.

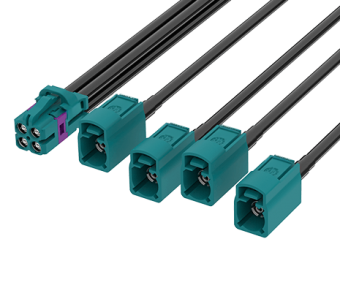

- FAKRA and Mini FAKRA cable Assemblies can be customized for different applications to meet specific customer requirements.
- Operating Temperature Range:−40°C to +105°C
APPLICATIONS
- Automotive Telematics and Infotainment Systems
- Advanced Driver Assistance Systems (ADAS)
- GPS, Satellite Radio, and Antenna Connections
- Industrial Wireless Communication Networks
- IIoT Devices in Harsh Environments
- V2X Communication Systems
- Industrial Automation
- Unmanned Transport Systems (AGVs/AMRs)
- Intelligent Transportation Systems
- Agricultural Machinery
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Plug | P/N | RAL No. Color | Application (Europe) | Application (USCAR) |
| A |  | 230D-PXA01 | 9015 Jet Black | Radio without phantom supply | |
| B |  | 230D-PXB01 | 9011 Cream | Radio with phantom supply | |
| C |  | 230D-PXC01 | 5015 Signal Blue | GPS / Navigation | GPS |
| D |  | 230D-PXD01 | 4014 Claret Violet | GSM | |
| Code | Plug | P/N | RAL No. Color | Application (Europe) | Application (USCAR) |
| E |  | 230D-PXE01 | 6012 Leaf Green | TV / SDARS Terrestrial | |
| F |  | 230D-PXF01 | 8011 Nut Brown | TV / SDARS Terrestrial / Camera | |
| Z |  | 230D-PXZ01 | 5021 Water Blue | Universal (Neutral) Code | |
PLUG KEYING ORIENTATIONS
| Key | Plug | P/N |
| 12 o'clock |  | 230D-P0X01 |
| Key | Plug | P/N |
| 6 o'clock |  | 230D-P6X01 |
SPECIFICATION
| Characteristic Impedance | 50Ω |
|---|---|
| Frequency Range | DC to 9.0 GHz |
| Insulation Resistance | 1000 MΩ |
| Withstanding Voltage | AC 800 Vrms |
| Voltage Rating | 60 V DC |
| Current Rating | 1.0 A Max. |
| Contact Resistance | 15 mΩ Max. |
| Durability | 25 cycles |
|---|
| Operating temperature range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 230D-PXX01 | 193 KB | PDF: Drawing |  |
| 3D | 230D-PXX01 | 890 KB | RAR: 3D File | |
