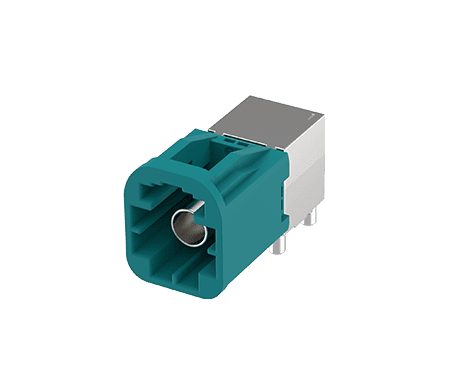

Mini FAKRA Plug, R/A, A Type, Nose 3/6/9/12 O'clock
230A-PXX00
Mini FAKRA Plug, R/A, A Type, Available in Nose 3/6/9/12 O'clock

ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
Share:
MAIN FEATURES
Truck applications
  • Frequency Range DC to 6 GHz (standard FAKRA), up to 15 GHz for Mini-FAKRA.
  • Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards.
  • Robust plastic housings provide high resistance to harsh automotive environments.
  • 13 color and mechanical coding options plus 1 neutral variant to prevent mismating.
  • Mini FAKRA connectors are Up to 80% smaller than standard FAKRA connectors, ideal for compact, high-density automotive electronics.
  • Mini FAKRA supports single, dual, and quad connector configurations for maximizing PCB real estate and installation flexibility.

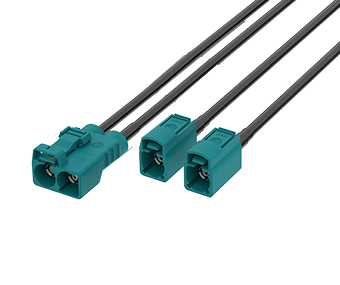

  • FAKRA and Mini FAKRA cable Assemblies  can be customized for different applications to meet specific customer requirements.
  • Operating Temperature Range:−40°C to +105°C


APPLICATIONS

Agricultural Vehicles
  • Automotive Telematics and Infotainment Systems
  • Advanced Driver Assistance Systems (ADAS)
  • GPS, Satellite Radio, and Antenna Connections
  • Industrial Wireless Communication Networks
  • IIoT Devices in Harsh Environments
  • V2X Communication Systems
  • Industrial Automation
  • Unmanned Transport Systems (AGVs/AMRs)
  • Intelligent Transportation Systems
  • Agricultural Machinery


APPLICATION SCENARIOS






CODE OPTIONS

CodePlugP/NRAL No.
Color		Application
(Europe)		Application
(USCAR)
A230A-PXA009005
Jet Black		Radio without phantom supply
B230A-PXB009001
Cream		Radio with phantom supply
C230A-PXC005005
Signal Blue		GPS / NavigationGPS
D230A-PXD004004
Claret Violet		GSM
E230A-PXE006002
Leaf Green		TV / SDARS Terrestrial
F230A-PXF008011
Nut Brown		TV / SDARS Terrestrial / Camera
G230A-PXG007031
Blue Gray		Remote Keyless EntrySDARS Terrestrial
CodePlugP/NRAL No.
Color		Application
(Europe)		Application
(USCAR)
H230A-PXH004003
Heather Violet		GPS / Navigation
J230A-PXJ001001
Beige		RemoteBluetooth / VPM
K230A-PXK001027
Curry		Diversity radioSDARS Satellite
N230A-PXN006019
Pastel Green		UndefinedDSRC / VPM
Z230A-PXZ005021
Water Blue		Universal (Neutral) Code

PLUG KEYING ORIENTATIONS

KeyPlugP/N

12 o'clock

Locking Nose at 12 o'clock230A-P0X00

3 o'clock

Locking Nose at 3 o'clock230A-P3X00
KeyPlugP/N

6 o'clock

Locking Nose at 6 o'clock230A-P6X00

9 o'clock

Locking Nose at 9 o'clock230A-P9X00
SPECIFICATION
ELECTRICAL
Characteristic Impedance50Ω
Frequency RangeDC to 9.0 GHz
Insulation Resistance1000 MΩ
Withstanding VoltageAC 800 Vrms
Voltage Rating60 V DC
Current Rating1.0 A Max.
Contact Resistance10 mΩ Max.
MECHANICAL
Durability25 cycles
ENVIRONMENTAL
Operating temperature range-40°C to +105°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing230A-PXX00173 KBPDF: DrawingDownload
3D230A-PXX00559 KBRAR: 3D FileDownload
