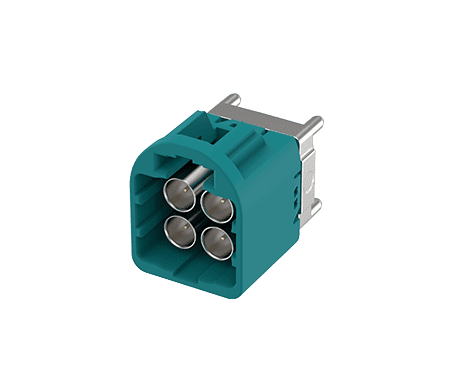

Mini Fakra Plug, Vertical, 2x2 Port-A Type
230D-PSX00
Mini Fakra Plug, Vertical, 2x2 Port-A Type

ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
MAIN FEATURES
Truck applications
  • Frequency Range DC to 6 GHz (standard FAKRA), up to 15 GHz for Mini-FAKRA.
  • Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards.
  • Robust plastic housings provide high resistance to harsh automotive environments.
  • 13 color and mechanical coding options plus 1 neutral variant to prevent mismating.
  • Mini FAKRA connectors are Up to 80% smaller than standard FAKRA connectors, ideal for compact, high-density automotive electronics.
  • Mini FAKRA supports single, dual, and quad connector configurations for maximizing PCB real estate and installation flexibility.
  • FAKRA and Mini FAKRA cable Assemblies  can be customized for different applications to meet specific customer requirements.
  • Operating Temperature Range:−40°C to +105°C


APPLICATIONS

Agricultural Vehicles
  • Automotive Telematics and Infotainment Systems
  • Advanced Driver Assistance Systems (ADAS)
  • GPS, Satellite Radio, and Antenna Connections
  • Industrial Wireless Communication Networks
  • IIoT Devices in Harsh Environments
  • V2X Communication Systems
  • Industrial Automation
  • Unmanned Transport Systems (AGVs/AMRs)
  • Intelligent Transportation Systems
  • Agricultural Machinery


APPLICATION SCENARIOS






CODE OPTIONS

CodePlugP/NRAL No.
Color
Application
(Europe)
Application
(USCAR)
A230D-PSA009005
Jet Black
Radio without phantom supply
B230D-PSB009001
Cream
Radio with phantom supply
C230D-PSC005005
Signal Blue
GPS / NavigationGPS
D230D-PSD004004
Claret Violet
GSM
E230D-PSE006002
Leaf Green
TV / SDARS Terrestrial
F230D-PSF008011
Nut Brown
TV / SDARS Terrestrial / Camera
G230D-PSG007031
Blue Gray
Remote Keyless EntrySDARS Terrestrial
CodePlugP/NRAL No.
Color
Application
(Europe)
Application
(USCAR)
H230D-PSH004003
Heather Violet
GPS / Navigation
J230D-PSJ001001
Beige
RemoteBluetooth / VPM
K230D-PSK001027
Curry
Diversity radioSDARS Satellite
N230D-PSN006019
Pastel Green
UndefinedDSRC / VPM
Z230D-PSZ005021
Water Blue
Universal (Neutral) Code

SPECIFICATION
ELECTRICAL
Characteristic Impedance50Ω
Frequency RangeDC to 9.0 GHz
Insulation Resistance1000 MΩ
Withstanding VoltageAC 800 Vrms
Voltage Rating60 V DC
Current Rating1.0 A Max.
Contact Resistance15 mΩ Max.
MECHANICAL
Durability25 cycles
ENVIRONMENTAL
Operating temperature range-40°C to +105°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing230D-PSX00209 KBPDF: DrawingDownload
3D230D-PSX00792 KBRAR: 3D FileDownload
