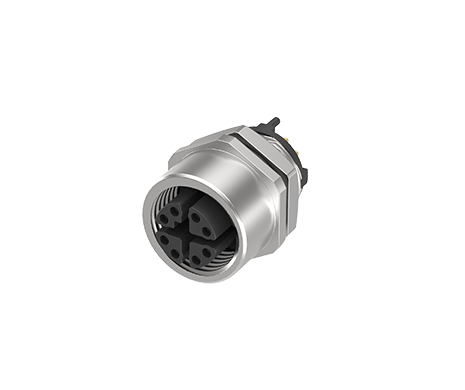

• Connector Solution 216X-08FSA
  • Connector Solution 216X-08FSA
  • Connector Solution 216X-08FSA
  • Connector Solution 216X-08FSA

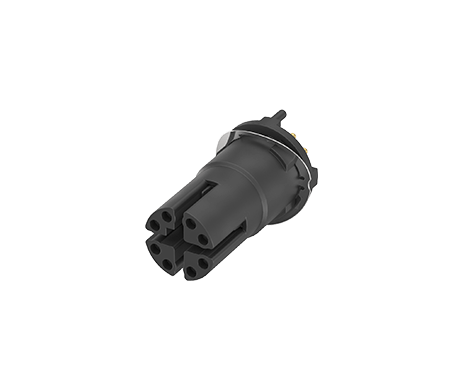

M12 Two Piece Insert, X-Code, 8Pin Female DIP Type
216X-08FSA
M12 Two Piece Insert, X-Code, 8Pin Female DIP Type

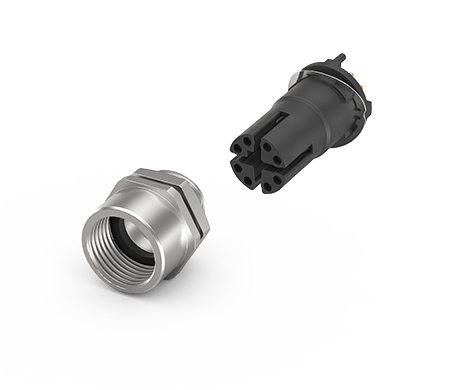

ATTEND offers robust M12 two-piece connectors designed for industrial automation and sensor signal transmission, featuring modular construction with separate plastic contact carriers and metal threaded coupling shells. These connectors support A, D, and X coding options, providing reliable and versatile solutions for various industrial communication needs.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
*
  • Flexible modular design for easy assembly and maintenance
  • Multiple coding options to support diverse communication protocols
  • High ingress protection and electromagnetic compatibility (EMC)
  • Space-saving and reliable connection suitable for harsh industrial environments
  • Pick and place assembly to reduce the working time.
APPLICATIONS
Industrial networks
  • Industrial Automation
  • Transportation & Rail Systems
  • Ethernet & Fieldbus Communication
  • Agriculture and Outdoor Equipment
  • Machinery and Telecommunications
  • Medical Devices

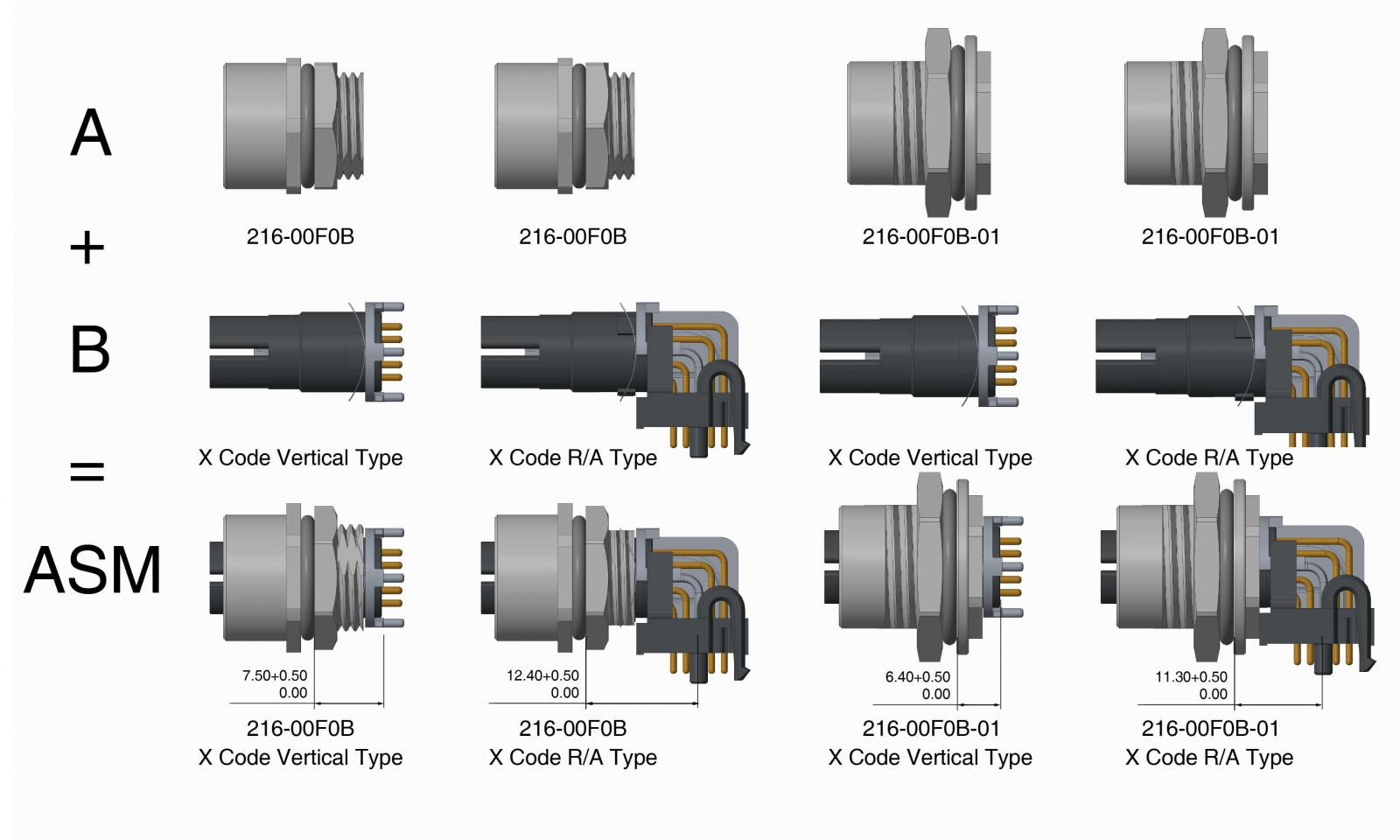

M12 Female Two-Piece Connector Installation Methods & Panel Cutout DimensionsM12 female two-piece installation method
Product Specification Comparison Table
Part NumberMate P/NPin AssignmentPin Count
             216X-08FSA             216X-08MO0216X-08FSA8Pin

SPECIFICATION
ELECTRICAL
Current Rating0.5A
Voltage Rating50V AC/60V DC
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing216X-08FSA85 KBPDF: DrawingDownload
3D216X-08FSA228 KBRAR: 3D FileDownload
Drawing216-00F0B146 KBPDF: DrawingDownload
Drawing216-00F0B-0176 KBPDF: DrawingDownload
Drawing216-000464 KBPDF: DrawingDownload
