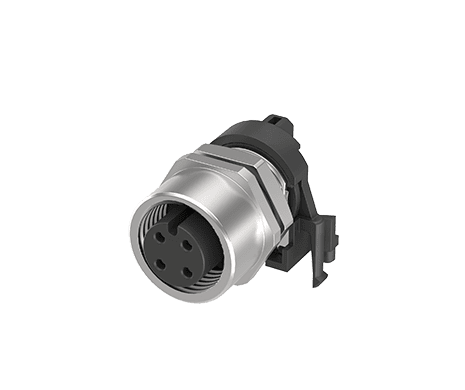

M12 Two Piece Insert, A-Code, XXPin Female R/A DIP Type
216A-XXFRA
M12 Two Piece Insert, A-Code, XXPin Female R/A DIP Type

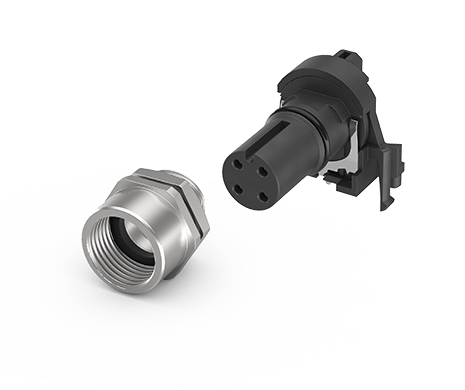

ATTEND offers robust M12 two-piece connectors designed for industrial automation and sensor signal transmission, featuring modular construction with separate plastic contact carriers and metal threaded coupling shells. These connectors support A, D, and X coding options, providing reliable and versatile solutions for various industrial communication needs.
ATTEND offers robust M12 two-piece connectors designed for industrial automation and sensor signal transmission, featuring modular construction with separate plastic contact carriers and metal threaded coupling shells. These connectors support A, D, and X coding options, providing reliable and versatile solutions for various industrial communication needs.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
(1).png)
- Flexible modular design for easy assembly and maintenance
- Multiple coding options to support diverse communication protocols
- High ingress protection and electromagnetic compatibility (EMC)
- Space-saving and reliable connection suitable for harsh industrial environments
- Pick and place assembly to reduce the working time.
APPLICATIONS
- Industrial Automation
- Transportation & Rail Systems
- Ethernet & Fieldbus Communication
- Agriculture and Outdoor Equipment
- Machinery and Telecommunications
- Medical Devices
M12 Female Two-Piece Connector Installation Methods & Panel Cutout Dimensions
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|

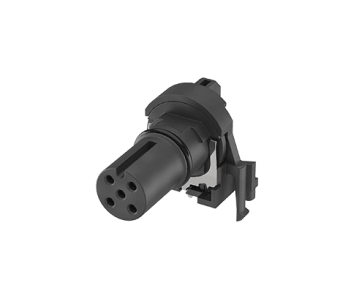

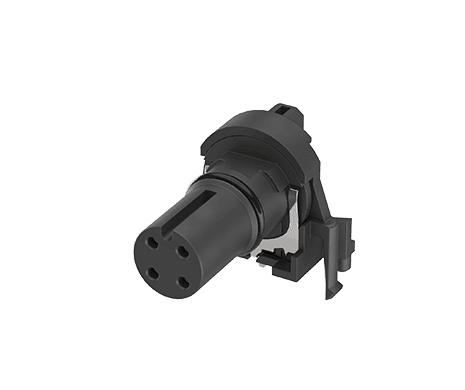

| 216A-04FRA | 216A-04MF1 216A-04MO0 216A-04MF0 |  | 4Pin |
| 216A-05FRA | 216A-05MF1 216A-05MO0 216A-05MF0 |  | 5Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-08FRA | 216A-08MF1 216A-08MO0 216A-08MF0 |  | 8Pin |
SPECIFICATION
| 2~4 Pin Current Rating | 4A |
|---|---|
| 2~4 Pin Voltage Rating | 250V |
| 5 Pin Current Rating | 4A |
|---|---|
| 5 Pin Voltage Rating | 60V |
| 6~8 Pin Current Rating | 2A |
|---|---|
| 6~8 Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216A-04FRA | 80 KB | PDF: Drawing |  |
| 3D | 216A-04FRA | 195 KB | RAR: 3D File | |
| Drawing | 216A-05FRA | 80 KB | PDF: Drawing | |
| 3D | 216A-05FRA | 210 KB | RAR: 3D File | |
| Drawing | 216-00F0B | 146 KB | PDF: Drawing | |
| Drawing | 216-00F0B-01 | 76 KB | PDF: Drawing | |
| Drawing | 216-0004 | 64 KB | PDF: Drawing | |
