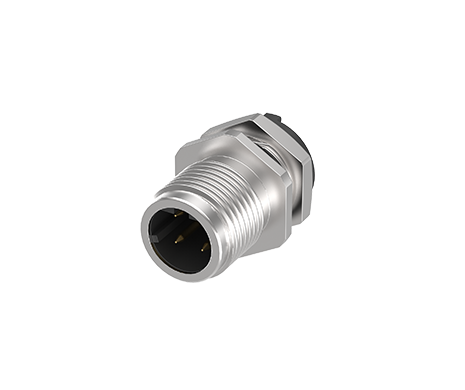

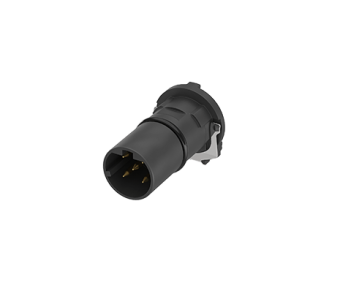

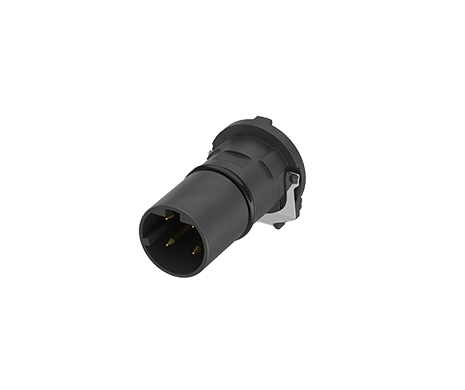

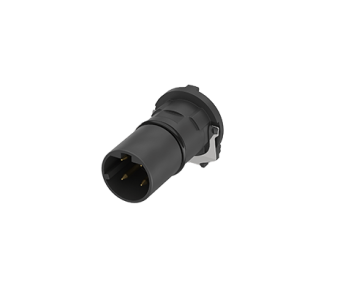

M12 Two Piece Insert, D-Code, XXPin Male DIP Type
216D-XXMSA
M12 Two Piece Insert, D-Code, XXPin Male DIP Type
ATTEND’s M12 Two-Piece Connectors adopt a modular design separating insert and housing, enabling flexible configurations and simplified inventory management. Fully compliant with IEC 61076-2-101 standards, the series supports A, D, and X coding with front-mount, rear-mount, and push-pull options for efficient assembly and easy maintenance. Built with engineering plastic inserts, gold-plated contacts, and nickel-plated housings with silicone and EPDM seals, the connectors achieve IP67 protection against dust, oil, and moisture. With proven durability and conductivity, they are ideal for industrial automation, railway, medical devices, and PLC, fieldbus, and Ethernet applications, ensuring reliable connectivity and signal integrity.
ATTEND’s M12 Two-Piece Connectors adopt a modular design separating insert and housing, enabling flexible configurations and simplified inventory management. Fully compliant with IEC 61076-2-101 standards, the series supports A, D, and X coding with front-mount, rear-mount, and push-pull options for efficient assembly and easy maintenance. Built with engineering plastic inserts, gold-plated contacts, and nickel-plated housings with silicone and EPDM seals, the connectors achieve IP67 protection against dust, oil, and moisture. With proven durability and conductivity, they are ideal for industrial automation, railway, medical devices, and PLC, fieldbus, and Ethernet applications, ensuring reliable connectivity and signal integrity.
Share:
MAIN FEATURES
- Fully compliant with IEC 61076-2-101
- Flexible modular design for easy assembly and maintenance
- Multiple coding options to support diverse communication protocols
- High ingress protection and electromagnetic compatibility (EMC)
- Space-saving and reliable connection suitable for harsh industrial environments
APPLICATIONS
- Industrial Automation
- Transportation & Rail Systems
- Ethernet & Fieldbus Communication
- Agriculture and Outdoor Equipment
- Machinery and Telecommunications
- Medical Devices
M12 Male Two-Piece Connector Installation Methods
Connector Assembly Compatibility

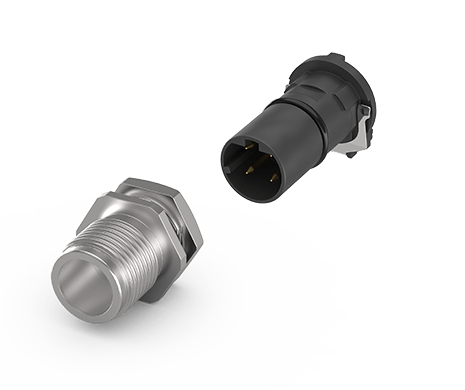

The M12 Two-Piece Connector features a versatile modular design, enabling effortless assembly and customizable pairing to meet diverse industrial needs. The following tables detail the compatibility of inserts, housings, and cables, allowing users to select the ideal components tailored to their specific requirements:
- M12 Two-Piece (Insert + Housing) Mating Table: Lists insert part numbers, codings, contact numbers, pin assignments, and compatible housing types (Threaded Front Mount, Threaded Rear Mount, Push-Pull Rear Mount).
- M12 Two-Piece Cable Compatibility Table: Displays the pairing of inserts with compatible housings and cables, including overmolded, field-installable, and push-pull soldering options.
This design is ideal for industrial, rail, or medical applications, offering flexible assembly solutions.
| Insert Part Number | Coding | Number of Contacts | Pin Assignment | Housing (Threaded, Rear Mount) | Housing (Threaded, Front Mount) | Housing (Push-Pull, Rear Mount) |
|---|---|---|---|---|---|---|
| 216D-04MSA | A-Coded | 4 |  | 216-00M0B | 216-00M0B-01 | 216-00M0B-02 |
| 216D-05MSA | A-Coded | 5 |  | 216-00M0B | 216-00M0B-01 | 216-00M0B-02 |
| Insert Part Number | Housing Part Number | Cable Part Number |
|---|---|---|
| 216D-04MSA | 216-00M0B (Threaded, Rear Mount) 216-00M0B-01 (Threaded, Front Mount) 216-00M0B-02 (Push-Pull, Rear Mount) | 216D-04FO0 (Overmolded), 216D-04FF0 (Field-Installable) 216D-04FO0 (Overmolded), 216D-04FF0 (Field-Installable) 216D-04FO0 (Overmolded), 216D-04FF0 (Field-Installable) |
| 216D-05MSA | 216-00M0B (Threaded, Rear Mount) 216-00M0B-01 (Threaded, Front Mount) 216-00M0B-02 (Push-Pull, Rear Mount) | 216D-05FO0 (Overmolded), 216D-05FF0 (Field-Installable) 216D-05FO0 (Overmolded), 216D-05FF0 (Field-Installable) 216D-05FO0 (Overmolded), 216D-05FF0 (Field-Installable) |
SPECIFICATION
| 4~5 Pin Current Rating | 4A |
|---|---|
| 4 Pin Voltage Rating | 250V |
| 5 Pin Voltage Rating | 60V |
|---|
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216D-04MSA | 82 KB | PDF: Drawing |  |
| 3D | 216D-04MSA | 101 KB | RAR: 3D File | |
| Drawing | 216D-05MSA | 82 KB | PDF: Drawing | |
| 3D | 216D-05MSA | 106 KB | RAR: 3D File | |
| Drawing | 216-00M0B | 146 KB | PDF: Drawing | |
| Drawing | 216-00M0B-01 | 80 KB | PDF: Drawing | |
| Drawing | 216-0005 | 39 KB | PDF: Drawing | |
| 3D | 216-00M0B-02 | 218 KB | RAR: 3D File | |
| Drawing | 216-00M0B-02 | 155 KB | PDF: Drawing | |
