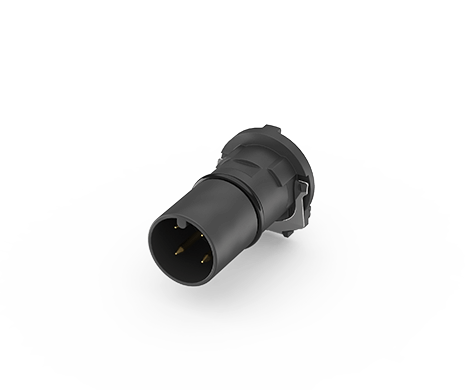

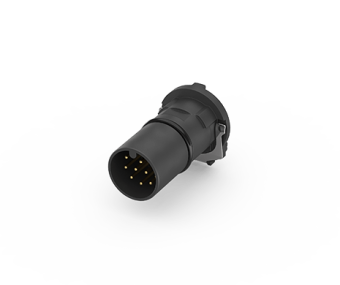

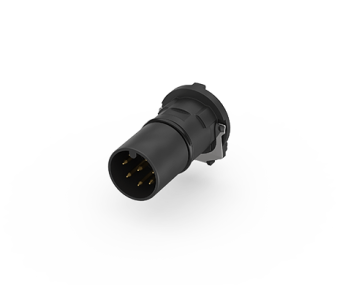

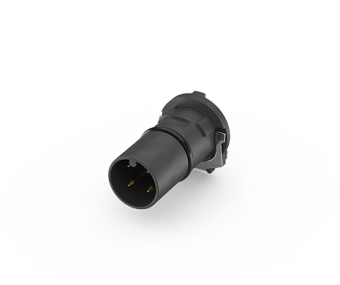

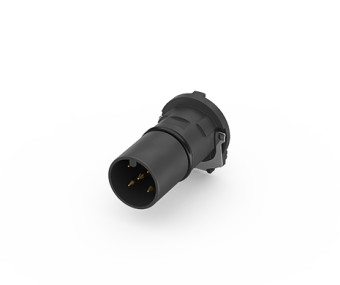

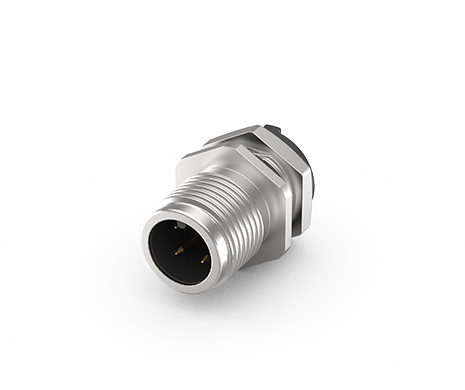

M12 Two Piece Insert, A-Code, XXPin Male DIP Type
216A-XXMSA
M12 Two Piece Insert, A-Code, XXPin Male DIP Type

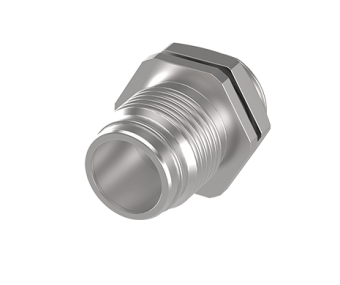

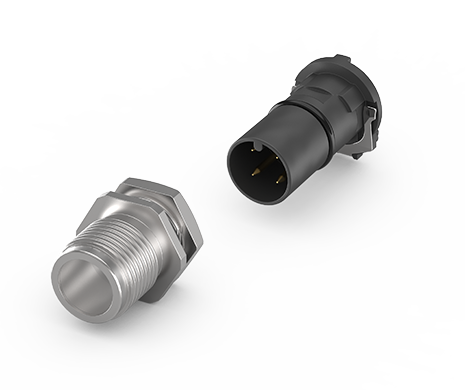

ATTEND offers robust M12 two-piece connectors designed for industrial automation and sensor signal transmission, featuring modular construction with separate plastic contact carriers and metal threaded coupling shells. These connectors support A, D, and X coding options, providing reliable and versatile solutions for various industrial communication needs.
Share:
AVAILABLE ACCESSORIES

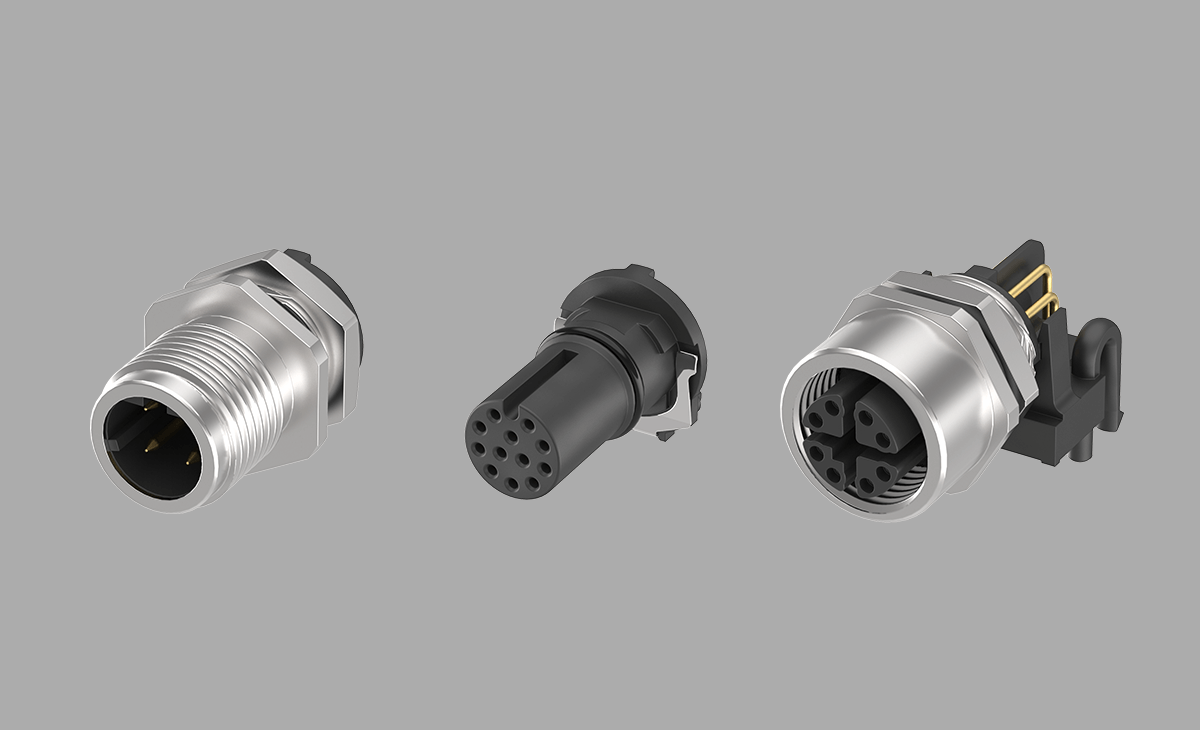

MAIN FEATURES
*
  • Flexible modular design for easy assembly and maintenance
  • Multiple coding options to support diverse communication protocols
  • High ingress protection and electromagnetic compatibility (EMC)
  • Space-saving and reliable connection suitable for harsh industrial environments
  • Pick and place assembly to reduce the working time.
APPLICATIONS
Industrial networks
  • Industrial Automation
  • Transportation & Rail Systems
  • Ethernet & Fieldbus Communication
  • Agriculture and Outdoor Equipment
  • Machinery and Telecommunications
  • Medical Devices

M12 Male Two-Piece Connector Installation Methods & Panel Cutout DimensionsM12 male two-piece installation method
Product Specification Comparison Table
Part NumberMate P/NPin AssignmentPin Count
             216A-04MSA             216A-04FF1
216A-04FO0
216A-04FF0		Pin Assignment4Pin
216A-05MSA216A-05FF1
216A-05FO0
216A-05FF0		Pin Assignment5Pin
Product Specification Comparison Table
Part NumberMate P/NPin AssignmentPin Count
216A-08MSA216A-08FF1
216A-08FO0
216A-08FF0		Pin Assignment8Pin
216A-12MSA216A-12FF1
216A-12FO0		Pin Assignment12Pin

SPECIFICATION
ELECTRICAL
2~4 Pin Current Rating4A
2~4 Pin Voltage Rating250V
5 Pin Current Rating4A
5 Pin Voltage Rating60V
6~8 Pin Current Rating2A
6~8 Pin Voltage Rating30V
9~12 Pin Current Rating1.5A
9~12 Pin Voltage Rating30V
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing216A-04MSA81 KBPDF: DrawingDownload
3D216A-04MSA100 KBRAR: 3D FileDownload
Drawing216A-05MSA82 KBPDF: DrawingDownload
3D216A-05MSA107 KBRAR: 3D FileDownload
Drawing216A-08MSA83 KBPDF: DrawingDownload
3D216A-08MSA128 KBRAR: 3D FileDownload
Drawing216A-12MSA88 KBPDF: DrawingDownload
3D216A-12MSA153 KBRAR: 3D FileDownload
Drawing216-00M0B146 KBPDF: DrawingDownload
Drawing216-00M0B-0180 KBPDF: DrawingDownload
Drawing216-000539 KBPDF: DrawingDownload
