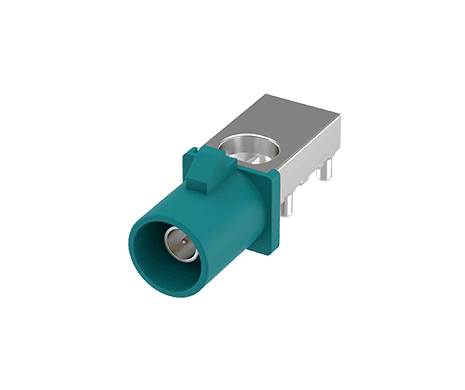

FAKRA Plug, R/A Mid Mount Type
228A-PXX00
FAKRA Plug, R/A Mid Mount Type
ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
ATTEND’s FAKRA connectors and cable assemblies provide reliable, high-performance RF connectivity solutions tailored for demanding automotive and industrial environments. Engineered to withstand harsh conditions such as vibration, temperature extremes, moisture, and dust, FAKRA products ensure secure, consistent signal transmission for critical communication systems.
The FAKRA connectors and cable assemblies offering emphasize durability, compliance with ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards, and flexibility to meet the unique system requirements for trusted, cutting-edge RF connectivity for automotive and industrial applications.
Share:
MAIN FEATURES
-
Frequency Range: DC to 6 GHz
-
Meets ISO 20860-1/2, SAE/USCAR-2, and USCAR-17 standards
-
Robust plastic housings provide high resistance to harsh automotive environments
-
13 color and mechanical coding options plus 1 neutral variant to prevent mismating
-

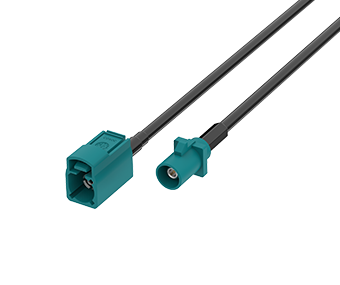

FAKRA cable assemblies can be customized for different applications to meet specific customer requirements
-
Operating Temperature Range: −40°C to +105°C
APPLICATIONS
- Automotive Telematics and Infotainment Systems
- Advanced Driver Assistance Systems (ADAS)
- GPS, Satellite Radio, and Antenna Connections
- Industrial Wireless Communication Networks
- IIoT Devices in Harsh Environments
- V2X Communication Systems
- Industrial Automation
- Unmanned Transport Systems (AGVs/AMRs)
- Intelligent Transportation Systems
- Agricultural Machinery
APPLICATION SCENARIOS
CODE OPTIONS
| Code | Plug | P/N | RAL No. Color | Application (Europe) | Application (USCAR) |
| A |  | 228A-PXA00 | 9005 Jet Black | Radio without phantom supply | |
| B |  | 228A-PXB00 | 9001 Cream | Radio with phantom supply | |
| C |  | 228A-PXC00 | 5005 Signal Blue | GPS / Navigation | GPS |
| D |  | 228A-PXD00 | 4004 Claret Violet | GSM | |
| E |  | 228A-PXE00 | 6002 Leaf Green | TV / SDARS Terrestrial | |
| F |  | 228A-PXF00 | 8011 Nut Brown | TV / SDARS Terrestrial / Camera | |
| G |  | 228A-PXG00 | 7031 Blue Gray | Remote Keyless Entry | SDARS Terrestrial |
| Code | Plug | P/N | RAL No. Color | Application (Europe) | Application (USCAR) |
| H |  | 228A-PXH00 | 4003 Heather Violet | GPS / Navigation | |
| I |  | 228A-PXI00 | 1001 Beige | Remote | Bluetooth / VPM |
| K |  | 228A-PXK00 | 1027 Curry | Diversity radio | SDARS Satellite |
| L |  | 228A-PXL00 | 3002 Carmine Red | Undefined | VPM |
| M |  | 228A-PXM00 | 2003 Pastel Orange | Undefined | RKE / TPMS |
| N |  | 228A-PXN00 | 6019 Pastel Green | Undefined | DSRC / VPM |
| Z |  | 228A-PXZ00 | 5021 Water Blue | Universal (Neutral) Code | |
PLUG KEYING ORIENTATIONS
| Key | Plug | P/N |
| Key Up |  | 228A-P0X00 |
| Key Right |  | 228A-P3X00 |
| Key | Plug | P/N |
| Key Down |  | 228A-P6X00 |
| Key Left |  | 228A-P9X00 |
SPECIFICATION
| Characteristic Impedance | 50Ω |
|---|---|
| Frequency Range | DC to 4.0 GHz |
| Insulation Resistance | 1000 MΩ |
| Withstanding Voltage | AC 800 Vrms |
| Voltage Rating | AC 335 Vrms |
| Current Rating | 1.0 A Max. |
| Contact Resistance | 10 mΩ Max. |
| Durability | 25 cycles |
|---|
| Operating temperature range | -40°C to +105°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 228A-PXX00 | 171 KB | PDF: Drawing |  |
| 3D | 228A-PXX00 | 115 KB | RAR: 3D File | |
