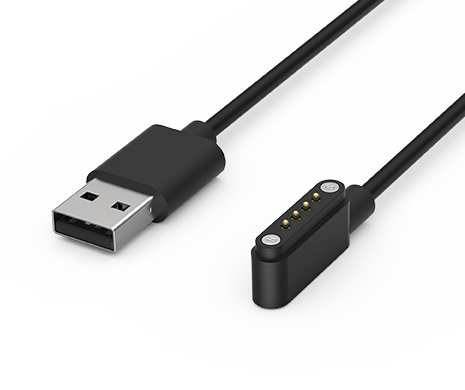

USB A to Pogo pin Cable, 4 pin black
US-AP4P-10001
Delivering dependable connectivity in a compact form, ATTEND’s USB A to Pogo Pin cable features a 4-pin magnetic pogo interface designed for quick, secure, and repeated connections. Ideal for charging, data transmission, or temporary power links in portable electronics, testing equipment, and modular devices. The 1-meter cable offers ample flexibility, while its black outer jacket ensures a clean, professional appearance. Perfect for applications requiring quick docking and undocking without wear on traditional connectors.
Share:
SPECIFICATION
| Rated Current | ≦ 3A |
|---|---|
| Applicable Standards | USB 2.0 |
| Max Data Transfer Rate | 480Mbps |
| Rated Voltage | 24V |
| Contact Resistance | Initial: 30mΩ or less |
| Dielectric Withstanding Voltage | AC-500V/1min |
| Insulation Resistance | DC-500V 100MΩ.KM MIN at 20°C |
| Length | 1.2M |
|---|---|
| Connector | USB A Male,Pogo pin (4 pin) |
| Side A Angle | Straight |
| Side B Angle | Right Angle |
| Materials / Colors | TPE/Black |
| Number of Positions | 4pin |
| Durability | 20,000 cycles |
| Cable Features | w/ magnet |
| Weight | 22g |
| Operating Temperature Range | -30°C to +60 °C |
|---|---|
| Country of Origin | China |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | US-AP4P-10001 | 151 KB | PDF: Drawing |  |
