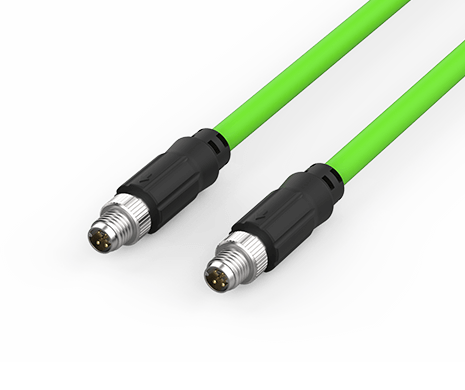

M8 SPE Hybrid Male to Male CABLE, L=1.2M
SPE-1P1P-12002
M8 SPE Hybrid Male to Male CABLE, L=1.2M
ATTEND’s SPE Hybrid Cable Assemblies integrate four independent Single Pair Ethernet (SPE) interfaces—supporting both data transmission and optional power—into a single, streamlined cable. Engineered for seamless system integration and cross-platform compatibility, these assemblies utilize T1 Industrial connectors that fully comply with IEEE 802.3 SPE T1 standards and adhere to the latest IEC 63171-6 specifications. ATTEND’s standards-based approach ensures reliable interoperability across a broad range of industrial devices, cabling infrastructures, and network systems, while supporting Ethernet data rates from 10 Mbps up to 1 Gbps.
ATTEND’s SPE Hybrid Cable Assemblies integrate four independent Single Pair Ethernet (SPE) interfaces—supporting both data transmission and optional power—into a single, streamlined cable. Engineered for seamless system integration and cross-platform compatibility, these assemblies utilize T1 Industrial connectors that fully comply with IEEE 802.3 SPE T1 standards and adhere to the latest IEC 63171-6 specifications. ATTEND’s standards-based approach ensures reliable interoperability across a broad range of industrial devices, cabling infrastructures, and network systems, while supporting Ethernet data rates from 10 Mbps up to 1 Gbps.
Share:
SPECIFICATION
| Connector design | M8 Hybrid SPE cable connector |
|---|---|
| Type standard | IEC 63171-6 |
| Version | Straight |
| Connector locking system | Screw |
| Cable outlet | 6.2-6.8mm |
| Mechanical operation | 100 Mating cycles |
| Weight (g) | 105(ref) |
| Termination | Solder |
|---|---|
| Connection cross-section | AWG 26x1P + AWG 18x2C |
| Operating temperature range | -40°C~+80°C |
|---|---|
| Degree of protection | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | SPE-1P1P-12002 | 262 KB | PDF: Drawing |  |
