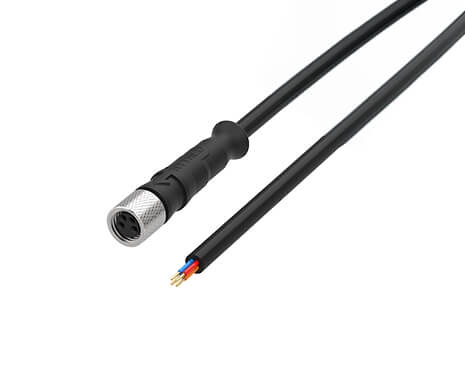

M8 A-code 4pin Female to open end, L =120 CM
M8-4R00-12001
ATTEND’s M8 A-code cable assemblies are available in 3-pin and 4-pin configurations with male or female connectors to open-ended cables, each with a length of 120 cm. Designed for signal transmission and sensor connectivity, these assemblies feature A-code keying for compatibility with industrial standards. With optional IP67-rated connectors, they offer reliable performance and mechanical stability in harsh environments, making them ideal for industrial automation, machinery, and factory applications.
Share:
MAIN FEATURES
- IP67-rated waterproof compliant
- Locking connector for vibration resistance
- A-code (3 or 4 pins)
- PVC cable jacket and molded for UV resistance
- Operation temperature range: -25°C to +85°C
- Current rate: 4 A
Applications:
- Industrial automation and sensors
- Medical healthcare
- Test and measurement
- Renewable energy
- Package conveyor and logistic systems
SPECIFICATION
| Connector design | M8 4 pin Female cable connector |
|---|---|
| Type standard | IEC 61076-2 |
| Version | Straight |
| Connector locking system | Screw |
| Cable outlet | 4.2-4.8 mm |
| Mechanical operation | >100 Mating cycles |
| Weight (g) | 40(ref) |
| Termination | Solder |
|---|---|
| Connection cross-section | 0.25 mm² / AWG 24 |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Degree of protection | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | M8-4R00-12001 | 210 KB | PDF: Drawing |  |
