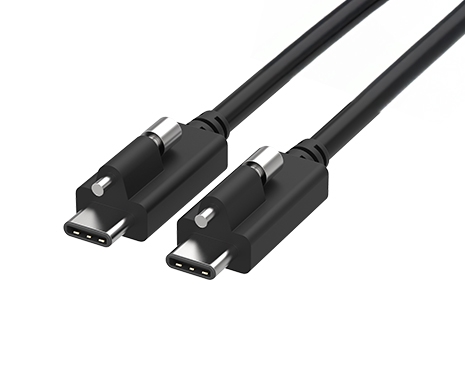

USB 3.2 Gen1 Type C Cable, Single Screw Locking
US-CPCP-12001
USB 3.2 Gen1 Type C Cable, Single Screw Locking
ATTEND’s USB 3.1 Type-C Screw-Locking Cable Series is purpose-built for industrial and harsh environments where stable high-speed data transmission and strong mechanical retention are essential.
The screw-locking mechanism complies with the USB Type-C Locking Connector Specification Revision 1.0, effectively preventing accidental disconnections caused by vibration or movement. This makes the series ideal for use in automation equipment, medical devices, transportation systems, and outdoor applications.
ATTEND’s USB 3.1 Type-C Screw-Locking Cable Series is purpose-built for industrial and harsh environments where stable high-speed data transmission and strong mechanical retention are essential.
The screw-locking mechanism complies with the USB Type-C Locking Connector Specification Revision 1.0, effectively preventing accidental disconnections caused by vibration or movement. This makes the series ideal for use in automation equipment, medical devices, transportation systems, and outdoor applications.
Share:
MAIN FEATURES
- Fully compliant with USB 3.2 Gen 1, supporting data transfer rates up to 5 Gbps
- Meets the USB Type-C Locking Connector Specification Revision 1.0, ensuring a secure and standardized screw-locking mechanism
- Supports USB Power Delivery up to 5V / 3A
- Customizable design options available to meet specific application requirements and customer needs
- Operating temperature range from -40°C to +85°C
APPLICATIONS:
- Industrial automation and robotics
- Medical imaging systems
- Surveillance and outdoor cameras
- Vehicle diagnostics and infotainment systems
- Test & Measurement Equipment
- POS and Office Equipment
SPECIFICATION
| Rated Current | ≦ 3A |
|---|---|
| Applicable Standards | USB 3.2 Gen 1 |
| Max Data Transfer Rate | 5Gbps |
| Rated Voltage | 30V |
| Contact Resistance | Initial: 30mΩ or less |
| Dielectric Withstanding Voltage | AC-500V/1min |
| Insulation Resistance | DC-500V 100MΩ.KM MIN at 20°C |
| Length | 1.2M |
|---|---|
| Connector | USB C Male,USB C Male |
| Side A Angle | Straight |
| Side B Angle | Straight |
| Materials / Colors | PVC/Black |
| Number of Positions | 24pin |
| Durability | 10,000 cycles |
| Cable Features | w/Signal Screw |
| Weight | 49g |
| Operating Temperature Range | -40°C to +85 °C |
|---|---|
| Country of Origin | China |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | US-CPCP-12001 | 303 KB | PDF: Drawing |  |
