Dual Nano SIM Socket, Tray Push-Pull
115U-B110

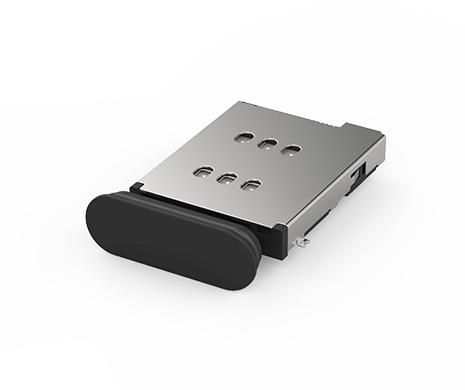

Dual Nano SIM Socket, Tray Push-Pull, Lock w/Switch, G/F, Reel

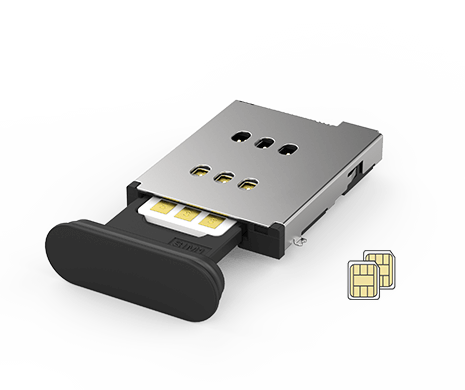

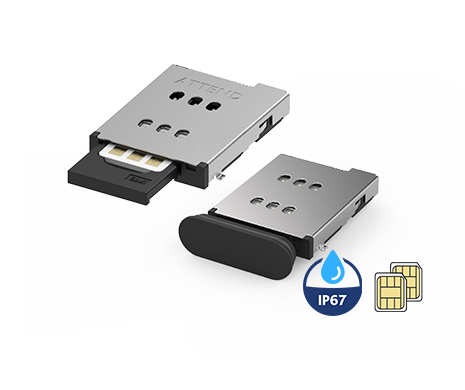

ATTEND’s 115U-B110 is a compact and user-friendly dual Nano SIM card connector featuring a tray push-pull design, ideal for applications requiring secure dual SIM management. It includes a card friction lock and foolproof orientation to ensure proper SIM 1 installation. A built-in tray lock mechanism enhances vibration resistance and stability. The independent tray prevents reverse insertion, ensuring precise mating and reliable signal performance across various mobile and industrial environments.

***Patent Cert. No.: TWM625102, CN217036175U
Share:

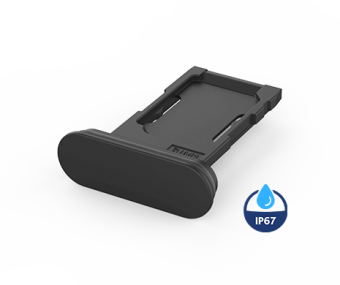

AVAILABLE ACCESSORIES
MAIN FEATURES

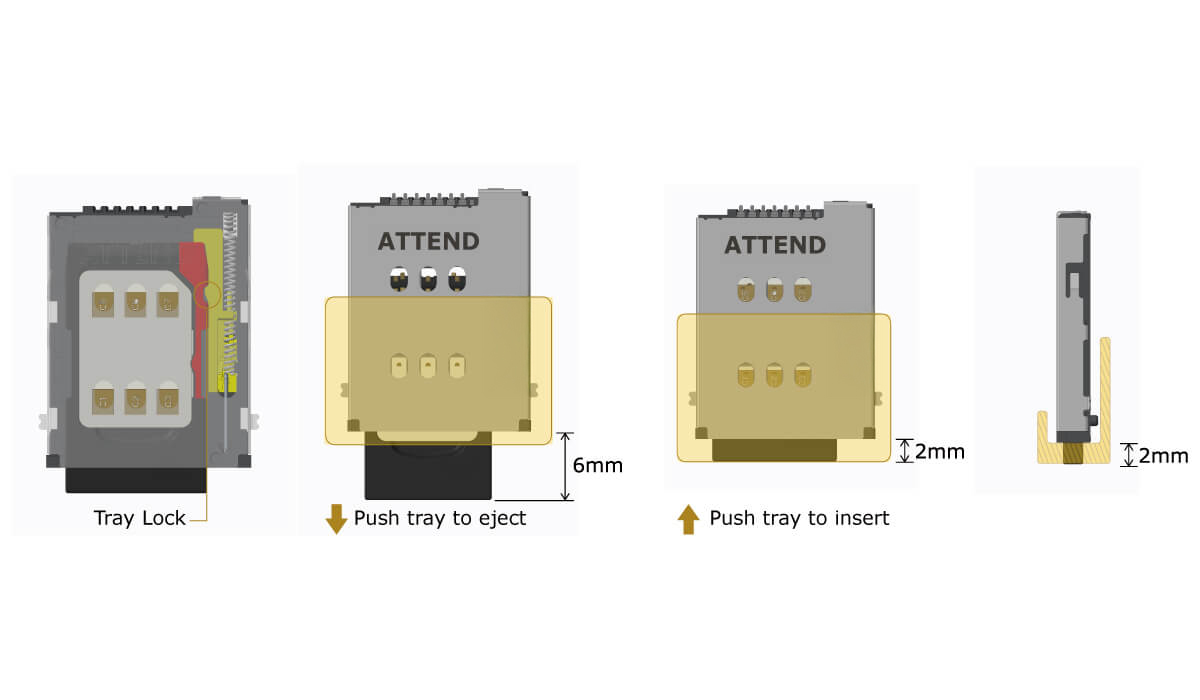

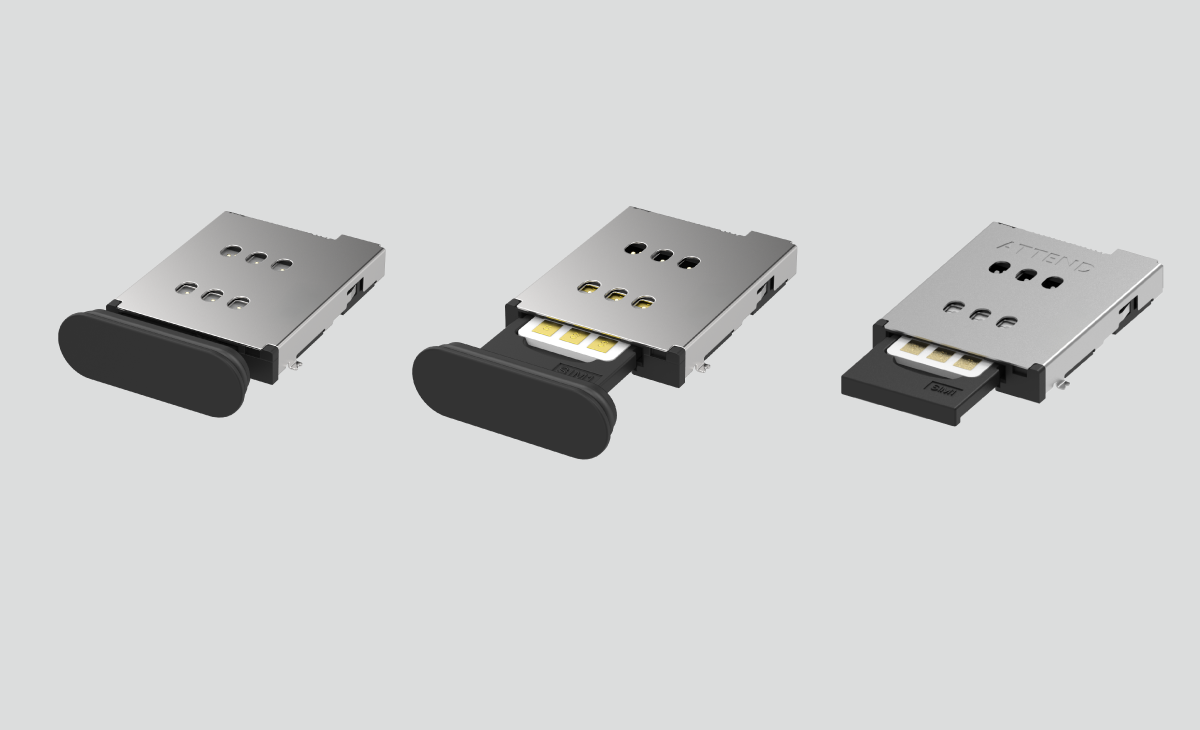

115U-B110 Main feature
  • Tray Push-Push Type Dual Nano-SIM Socket (Tray is separated)
  • Card detection and tray insertion with anti-reverse protection
  • Extended 6mm ejection length for easy card removal
  • 2mm tray edge for adaptable panel/casing design
  • Tray lock function for robustness against shock
  • Tested to 500 mating cycles
  • Operating temperature: -40°C to +85°C
  • Passed EN60721-3-5 Class 5M3 random vibration and Level II shock tests
ATTEND’s Tray Push-Push series offers two models to choose from: the 115U-A101, which supports a single Nano SIM card connector, and the 115U-B100, which supports dual Nano SIM card connectors. Both models are designed for easy installation while maintaining robust, vibration-resistant features suitable for industrial and automotive applications. To complete a purchase, make sure to also acquire the 115U-T001 (for use with the 115U-A101) and the 115U-T003 (for use with the 115U-B100) trays.


APPLICATIONS
automotive
  • Telematics and V2X
  • IIoT
  • Smart meter
  • Gateway and Router
  • M2M
  • Mobile devices
  • Security and surveillance
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating10V DC
Contact Resistance100mΩ Max.
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability500 cycles
Contact Normal Force0.5N Max. per pin
Tray Lock Force3N Min.
ENVIRONMENTAL
Operating temperature range-40°C~+105°C
Storage temperature range-40°C~+105°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115U-T00378 KBPDF: DrawingDownload
Drawing115U-T00582 KBPDF: DrawingDownload
Drawing115U-B1101552 KBPDF: DrawingDownload
3D115U-B110605 KBRAR: 3D FileDownload
Drawing115U-T018164 KBPDF: DrawingDownload
3D115U-T018136 KBRAR: 3D FileDownload
