2-in-1 Dual Stack Socket, Tray Push-Pull

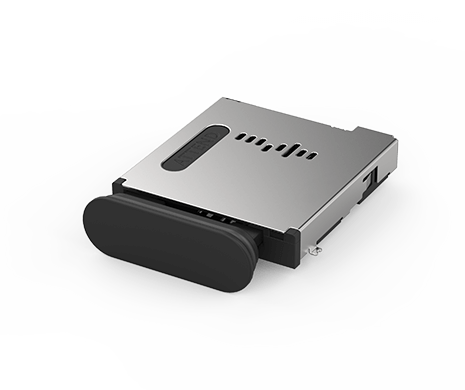

115U-B210
Micro SD and Nano SIM Socket, Stack Type, Tray Push-Pull, w/Lock and Switch, 10u", C7025, Reel

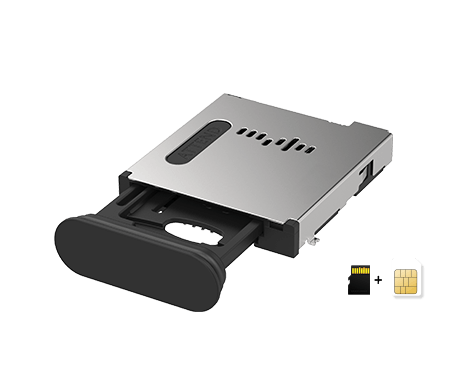

ATTEND’s 115U Push-Pull SIM Socket Series integrates a secure Push-Pull mechanism with an innovative tray design, ensuring reliable SIM retention, smooth ejection, and resistance to vibration and shock. Tested to EN 60721-3-5 Class 5M3 standards, it is optimized for automotive, industrial, and IoT applications, offering reverse insertion protection, precise card alignment, and long-term durability.
For enhanced environmental resilience, the series provides IP67 waterproof protection when used with designated trays and operates within a temperature range of -40°C to +105°C. The 115U-B210 model features a 2-in-1 stacked design for SIM and Micro SD, maximizing PCB space efficiency and design flexibility.
ATTEND’s 115U Push-Pull SIM Socket Series integrates a secure Push-Pull mechanism with an innovative tray design, ensuring reliable SIM retention, smooth ejection, and resistance to vibration and shock. Tested to EN 60721-3-5 Class 5M3 standards, it is optimized for automotive, industrial, and IoT applications, offering reverse insertion protection, precise card alignment, and long-term durability.
For enhanced environmental resilience, the series provides IP67 waterproof protection when used with designated trays and operates within a temperature range of -40°C to +105°C. The 115U-B210 model features a 2-in-1 stacked design for SIM and Micro SD, maximizing PCB space efficiency and design flexibility.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
AVAILABLE ACCESSORIES
-

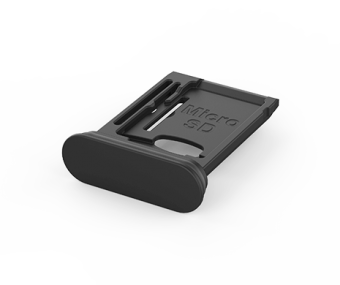

115U-T009　　　　　　　Card Tray for Nano SIM+Micro SD, L=19.6 -
115U-T012　　　　　　　Card Tray for Micro SIM+Micro SD, L=21.6 -
115U-T010　　　　　　　Card Tray for Micro SIM+Micro SD, L=19.6 -
115U-T013　　　　　　　Card Tray for Micro SIM+Micro SD, L=21.6 -

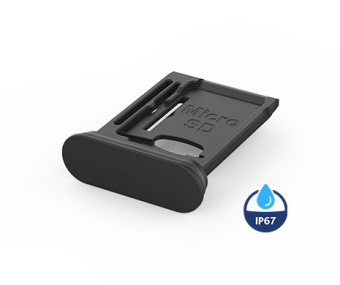

115U-T019　　　　　　　Card Tray for Nano SIM+Micro SD, IP67, L=23.6 -
115U-T020　　　　　　　Card Tray for Micro SIM+Micro SD, IP67, L=23.6
MAIN FEATURES
- Push-Pull Mechanism – Prevents accidental ejection due to vibrations or movement, ensuring secure card retention. (Tray is separate.)
- Next-Gen Tray – Features card detection, anti-reverse insertion protection, and a tray lock function for enhanced shock resistance.
- Innovative Design – Maximizes space utilization for enhanced efficiency.
- Flexible PCB Layout – Optimized for both in-board and panel-side designs.
- EN 60721-3-5 Certified – Withstands random vibration and Level II shock.

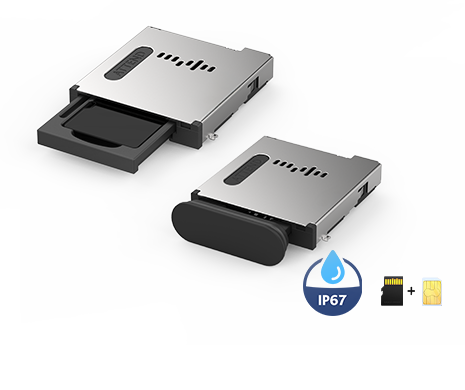

- IP67 Waterproof – Achieves IP67 protection with designated trays.
- Wide Temperature Range – Operates from -40°C to +105°C.
Application:
- Industrial Automation
- Automotive & Transportation
- Security & Surveillance
- Drones
- Unmanned Transport equipment
- IIoT Devices
- Portable Consumer Electronics
- Wearable Technology
- Medical Devices
- Home Automation
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 10V DC |
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 100 cycles |
|---|---|
| Contact Normal Force | 0.5N Max. per pin |
| Tray Lock Force | 3N Min. |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | -40°C~+105°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 115U-T009 | 155 KB | PDF: Drawing |  |
| 3D | 115U-T009 | 198 KB | RAR: 3D File | |
| Drawing | 115U-T010 | 154 KB | PDF: Drawing | |
| 3D | 115U-T010 | 172 KB | RAR: 3D File | |
| Drawing | 115U-T012 | 80 KB | PDF: Drawing | |
| 3D | 115U-T012 | 196 KB | RAR: 3D File | |
| Drawing | 115U-T013 | 154 KB | PDF: Drawing | |
| 3D | 115U-T013 | 170 KB | RAR: 3D File | |
| Drawing | 115U-B210 | 915 KB | PDF: Drawing | |
| 3D | 115U-B210 | 891 KB | RAR: 3D File | |
| Drawing | 115U-T019 | 158 KB | PDF: Drawing | |
| 3D | 115U-T019 | 184 KB | RAR: 3D File | |
| Drawing | 115U-T020 | 158 KB | PDF: Drawing | |
| 3D | 115U-T020 | 155 KB | RAR: 3D File | |
| Datasheet | 115U-B210 Spec | 399 KB | PDF:Spec | |
