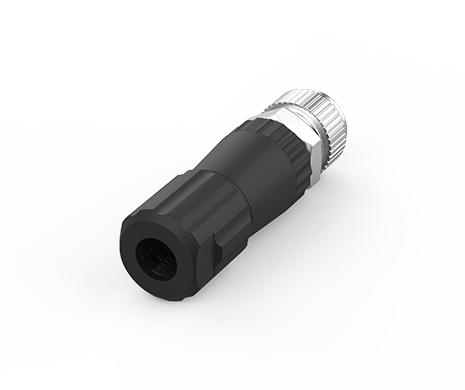

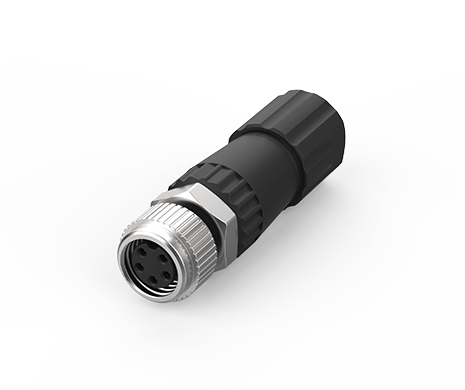

M8 A Code Plug, Female, Field Installable
219A-XXFF0
M8 A-Code Plug for Cable, Female Pin, for Field Installable
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 219A-03FF0 | 219A-03MAR 219A-03MAF 219A-03MSF 219A-03MO0 219A-03MF0 |  | 3Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 219A-05FF0 | 219A-05MRF 219A-05MSF 219A-05MAF 219A-05MAF-01 219A-05MAR 219A-05MO0 219A-05MF0 |  | 5Pin |

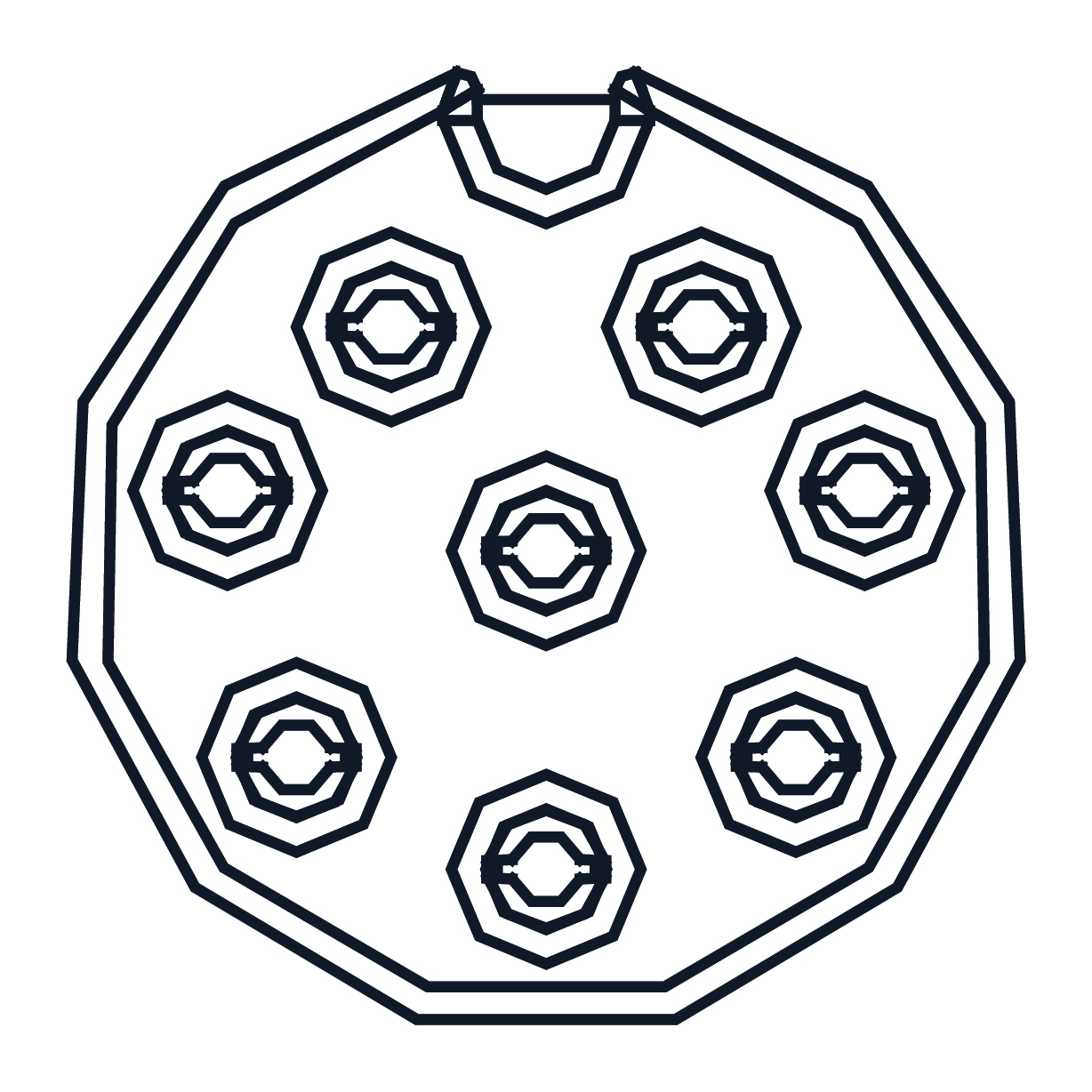

| 219A-08FF0 | 219A-08MAF |  | 8Pin |
SPECIFICATION
| Current Rating | 1.5-3A |
|---|---|
| Voltage | 30-50VAC/60VDC |
| Water Proof | IP67 |
|---|
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 219A-03FF0 | 262 KB | PDF: Drawing |  |
| Drawing | 219A-05FF0 | 108 KB | PDF: Drawing | |
| 3D | 219A-05FF0 | 608 KB | RAR: 3D File | |
| Drawing | 219A-03FF0 | 262 KB | PDF: Drawing | |
| Drawing | 219A-08FF0 | 272 KB | PDF: Drawing | |
| 3D | 219A-08FF0 | 632 KB | RAR: 3D File | |
