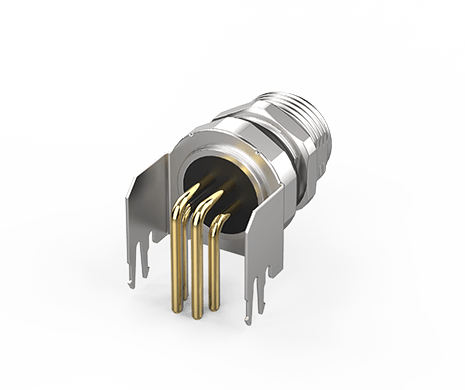

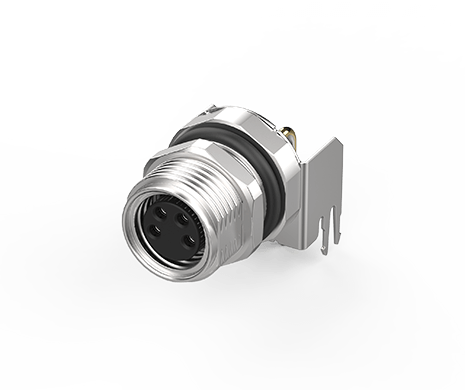

M8 A Code, Female, 3 Pin, R/A DIP, Shielded, 10μ"
219A-XXFRF
M8 A Code Receptacle, Female Pin, R/A DIP, Front Fastened, Shielded, 10μ"
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 219A-03FRF | 219A-03MO0 219A-03MF0 |  | 2Pin |
| 219A-04FRF | 219A-04MO0 219A-04MF0 |  | 4Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 219A-05FRF | 219A-05MO0 219A-05MO0-01 219A-05MF0 |  | 5Pin |
SPECIFICATION
| Current Rating | 1.5-3A |
|---|---|
| Voltage Rating | 30-50VAC/60VDC |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 219A-03FRF | 76 KB | PDF: Drawing |  |
| Drawing | 219A-04FRF | 76 KB | PDF: Drawing | |
| 3D | 219A-04FRF | 300 KB | RAR: 3D File | |
| Drawing | 219A-05FRF | 79 KB | PDF: Drawing | |
| 3D | 219A-05FRF | 375 KB | RAR: 3D File | |
