IP68 USB4 Gen3 R/A Type-C Receptacle 15u"

217B-BE09

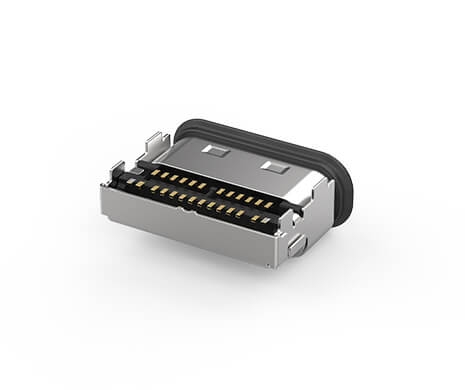

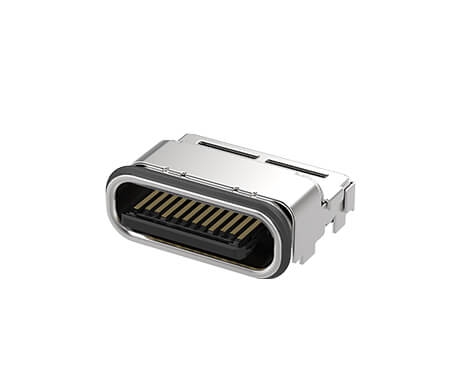

USB4 Gen3 Type C R/A Receptacle, Dual Row SMT 15u", IP68 Waterproof

ATTEND’s waterproof USB Type-C connectors combine next-generation high-speed data performance with rugged IP68-rated protection, making them ideal for industrial, automotive, and portable applications. These 24-pin connectors feature a reversible design for ease of use and support data transfer rates up to 40 Gbps (USB4 Gen3). With a dual-row SMT layout, integrated EMI shielding, and sealed construction, they ensure excellent signal integrity and durability even in harsh environments. ATTEND provides reliable, compact connectivity solutions for PCB designers seeking performance, flexibility, and environmental resilience.

MAIN FEATURES

IP67 and IP68 waterproof variations are available
Available in various pin configurations, compatible with data transfer speeds ranging from 480Mbps to 10Gbps.
Operating temperature range: -40°C to +85°C
Rated for 1,000 mating cycles
Design to secure mechanical strength of both receptacle and plug

APPLICATIONS

Rugged environmental
Outdoor usage
Automotive
Industrial
Communication
Factory automation
Home application
Marine
Data storage
Compact handheld devices

SPECIFICATION

ELECTRICAL
Current Rating	5A
Voltage Rating	30 VDC
Contact Resistance	40mΩ
Insulation Resistance	100MΩ
Dielectric Withstanding Voltage	100VAC

MECHANICAL
Durability	10,000 Cycle
Insertion Force	5 to 20N
Extraction Force	8 to 20N

ENVIRONMENTAL
Operating temperature range	-40°C~+85°C

DOWNLOAD

CATEGORY	TITLE	SIZE	FILE TYPE	DOWNLOAD
Drawing	217B-BE09	1389 KB	PDF: Drawing
3D	217B-BE09	4236 KB	RAR: 3D File
