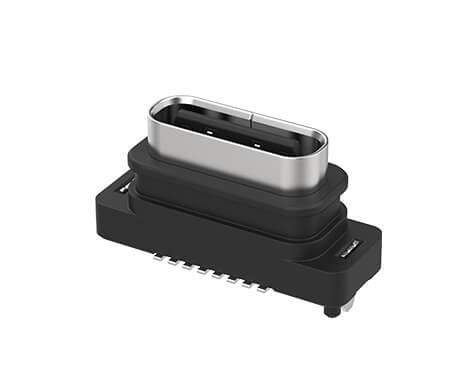

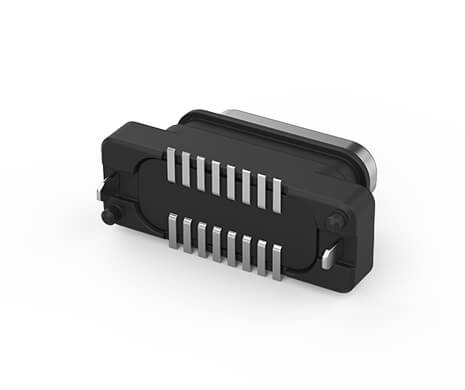

IP68 USB-C Receptacle, 16P Dual Row SMT 3u"
217D-AB12
USB Type C Receptacle, 16 Pin Dual Row SMT 3u", IP68 Waterproof

ATTEND’s waterproof USB Type-C connectors deliver rugged IP68 protection for industrial, automotive, and portable applications. Supporting up to 480 Mbps data rates and 20V/5A power delivery, they ensure reliable high-speed performance.

Designed for -40°C to +85°C operation and up to 10,000 mating cycles, these connectors combine durability, efficiency, and versatility to meet the demands of harsh environments and compact PCB designs.
Share:
MAIN FEATURES
Waterproof USB Type-CA

  • IP67 and IP68 waterproof variations are available
  • Available in various pin configurations, compatible with data transfer speeds ranging from 480Mbps to 10Gbps.
  • Operating temperature range: -40°C to +85°C
  • Rated for 10,000 mating cycles
  • Design to secure mechanical strength of both receptacle and plug
APPLICATIONS
Automotive
  • Rugged environmental
  • Outdoor usage
  • Automotive
  • Industrial
  • Communication
  • Factory automation
  • Home application
  • Marine
  • Data storage
  • Compact handheld devices
SPECIFICATION
ELECTRICAL
Current Rating5A
Voltage Rating20 V AC/DC
Contact Resistance40mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability10,000 Cycle
Insertion Force8 to 20N
Extraction Force6 to 20N
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing217D-AB12887 KBPDF: DrawingDownload
3D217D-AB12409 KBRAR: 3D FileDownload
Datasheet217D-AB12 Spec151 KBPDF:SpecDownload
