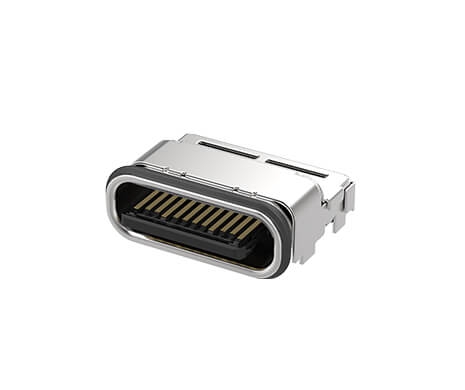

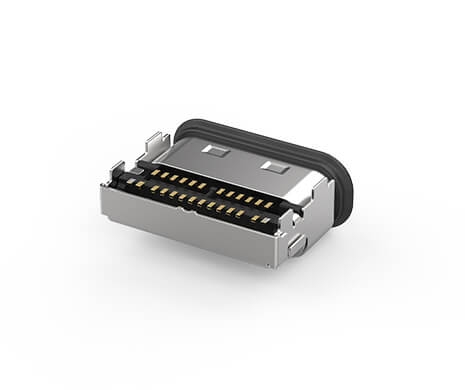

IP67 USB-C Receptacle, Dual SMT, G/F

217B-BA06

USB Type C Receptacle, Dual Row SMT Type, G/F, IP67 Waterproof, w/ Oring

ATTEND’s waterproof USB Type-C connectors deliver rugged IP67 protection for industrial, automotive, and portable applications. Supporting up to 10 Gbps data rates and 20V/5A power delivery, they ensure reliable high-speed performance.

Designed for -40°C to +105°C operation and up to 10,000 mating cycles, these connectors combine durability, efficiency, and versatility to meet the demands of harsh environments and compact PCB designs.
Share:

MAIN FEATURES

Waterproof USB Type-CA

  • IP67-rated for dust and water protection

  • Supporting 20V/5A power delivery

  • Operating temperature range: -40°C~+105°C

  • Rated for 10,000 mating cycles

  • Design to secure mechanical strength of both receptacle and plug

APPLICATIONS
Automotive

  • Rugged environmental

  • Outdoor usage

  • Automotive

  • Industrial

  • Communication

  • Factory automation

  • Home application

  • Marine

  • Data storage

  • Compact handheld devices

SPECIFICATION

ELECTRICAL
Current Rating5A
Voltage Rating20 V AC/DC
Contact Resistance40mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability10,000 Cycle
Insertion Force5 to 20N
Extraction Force8 to 20N
ENVIRONMENTAL
Operating temperature range-40°C~+105°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing217B-BA06386 KBPDF: DrawingDownload
3D217B-BA063143 KBRAR: 3D FileDownload
Datasheet217B-BA06 Spec425 KBPDF:SpecDownload
