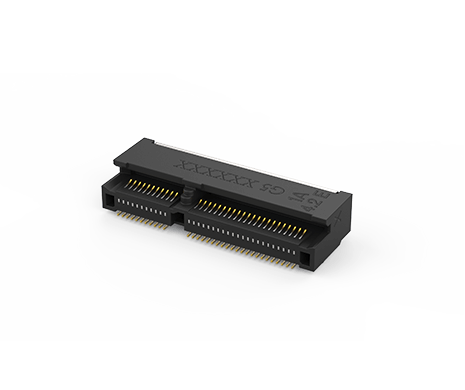

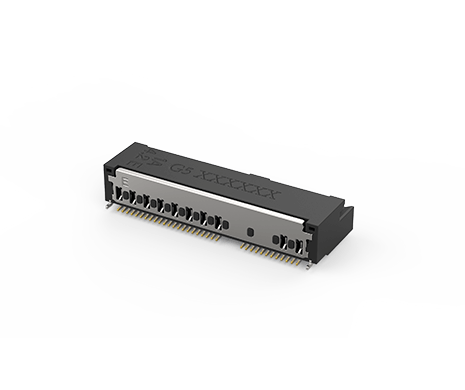

M.2 Gen5 Socket E Key, H=4.2mm
123A-42E02
M.2 Gen5 Socket, H4.2 E Key 0.5 Pitch G/F, Black, Reel
ATTEND’s M.2 Next Generation Form Factor (NGFF) Gen5 connector is engineered for ultra-thin devices, delivering substantial PCB space savings compared to traditional mini PCIe® connectors. This compact solution supports high-speed data transmission, with compatibility for PCI Express 5.0, SATA 3.0, and USB 3.0, while fully complying with PCI-SIG PCIe M.2 specifications. The user-friendly one-action latch simplifies installation, reducing both time and labor costs. As the evolution of mini and half-mini cards, the M.2 NGFF series is ideal for slim platforms integrating Wi-Fi, Bluetooth®, and wireless WAN functionalities.
ATTEND’s M.2 Next Generation Form Factor (NGFF) Gen5 connector is engineered for ultra-thin devices, delivering substantial PCB space savings compared to traditional mini PCIe® connectors. This compact solution supports high-speed data transmission, with compatibility for PCI Express 5.0, SATA 3.0, and USB 3.0, while fully complying with PCI-SIG PCIe M.2 specifications. The user-friendly one-action latch simplifies installation, reducing both time and labor costs. As the evolution of mini and half-mini cards, the M.2 NGFF series is ideal for slim platforms integrating Wi-Fi, Bluetooth®, and wireless WAN functionalities.
Share:
MAIN FEATURES
- The heights are 4.2mm and 8.5mm
- B, E, and M keying options for module cards
- PCI-SIG PCIe M.2 specification compliant
- 0.5 mm pitch featuring sixty-seven contact points
APPLICATION:
- Data storage
- Servers
- Industrial PCs
- IoT
SPECIFICATION
| Current Rating | 1A (power pin) |
|---|---|
| Voltage Rating | 50VAC |
| Contact Resistance | 55mΩ, Δ20mΩ MAX. |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 300VAC |
| Durability | 60 Cycle |
|---|---|
| Mating Force | 25N max. |
| Un-mating Force | 25N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 123A-42E02 | 373 KB | PDF: Drawing |  |
| 3D | 123A-42E02 | 928 KB | RAR: 3D File | |
| Datasheet | 123A-XXXX2 Spec | 550 KB | PDF:Spec | |
