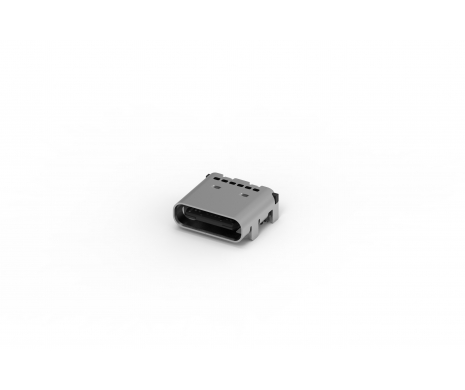

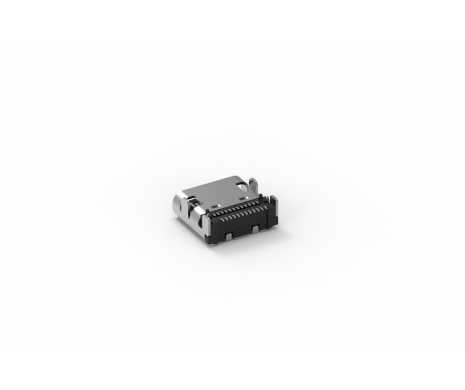

USB Type C Receptacle, w/SMD
217B-BC02
USB Type C Receptacle, 24Pin Dual Row w/SMD, 5µ"
USB Type-C is a 24-pin USB connector system featuring a reversible design, allowing users to insert the connector without worrying about orientation. ATTEND’s USB Type-C connector series offers PCB designers optimal flexibility and space-saving solutions, supporting high-frequency plug-in cycles with Power Delivery up to 25W (5V/5A). This ensures reliable, high-performance connections and fast charging for a variety of devices.
USB Type-C is a 24-pin USB connector system featuring a reversible design, allowing users to insert the connector without worrying about orientation. ATTEND’s USB Type-C connector series offers PCB designers optimal flexibility and space-saving solutions, supporting high-frequency plug-in cycles with Power Delivery up to 25W (5V/5A). This ensures reliable, high-performance connections and fast charging for a variety of devices.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
MAIN FEATURES
APPLICATIONS
- Rugged environmental
- Outdoor usage
- Automotive
- Industrial
- Communication
- Factory automation
- Home application
- Marine
- Data storage
- Compact handheld devices
SPECIFICATION
| Current Rating (Vbus) | 5A |
|---|---|
| Current Rating (Vconn & GND) | 1.25A |
| Current Rating (other pin) | 0.25A |
| Voltage Rating | 5VAC max |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | -55°C~+85°C |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217B-BC02 | 303 KB | PDF: Drawing |  |
| 3D | 217B-BC02 | 420 KB | RAR: 3D File | |
| Datasheet | 217B-BC02 | 512 KB | PDF:Spec | |
