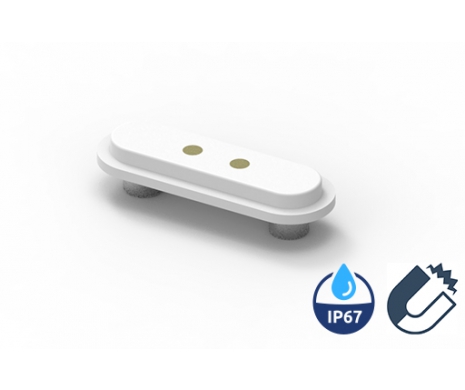

Pogo Pin, Waterproof, Magnet, H4.5mm, Pitch 4
303C-C4515-40-02
Pogo Machine Pin, Water proof, Magnet Type, H=4.5mm, Pitch 4.0, DIP, 3u''
Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.
Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Magnetic Pogo Connector
Pogo Pin connector integrates with magnet that offers an intelligent alternative to mechanical mating. Magnet enhanced Pogo Pin is able to automatically attach to a device for power and data transmission.
Benefit of Magnetic Pogo are:
● Fast connection
● Tear-away function, which prevents damage to the application by otherwise unintentional disconnection.
● Vibration-proof
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
ATTEND’s IP67 Waterproof Magnetic Connector offers reliable and efficient connections with magnetic alignment for stable power and data transmission.
- Easy and Fast Connection: Magnetic design ensures quick and precise attachment.
- Waterproof IP67: Protects against water and dust for outdoor and harsh environments.
- High Durability: Supports numerous mating cycles for long-lasting performance.
- Breakaway Function: Prevents damage with safe disconnection under accidental force.
- Integrated Design: Includes cable design and assembly for seamless integration.
This connector is ideal for outdoor devices, industrial equipment, and other demandin
Applications:
- Smart Wearable Products: Ideal for fitness trackers, smartwatches, and other wearable technologies.
- Office Devices: Perfect for ePaper meeting room booking displays and other office automation solutions.
- Medical Industry: Reliable for devices such as blood pressure monitors, heart rate monitors, and other medical equipment.
SPECIFICATION
| Current Rating | 2A per pin |
|---|---|
| Voltage Rating | 5 VDC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Pin Strength | 9.8N min. |
|---|---|
| Pin Pulling off Force | 4.9N min. |
| Durability | 10,000 Cycles |
| Operating temperature range | -30°C~+85°C |
|---|---|
| Storage temperature range | -30°C~+85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 303C-C4515-40-02 | 475 KB | PDF: Drawing |  |
| Datasheet | 303C-C4515-40-02 | 294 KB | PDF:Spec | |
| Drawing | 303-0002 | 830 KB | PDF: Drawing | |
