USB Type C Straight Receptacle, T/H w/SMD
217D-AA06

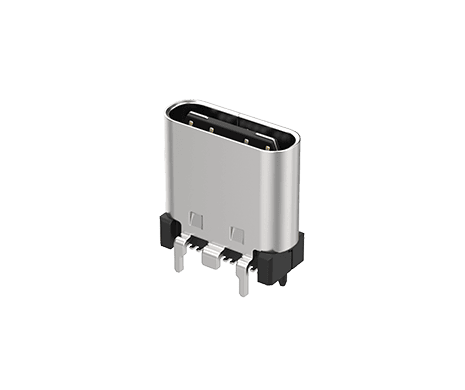

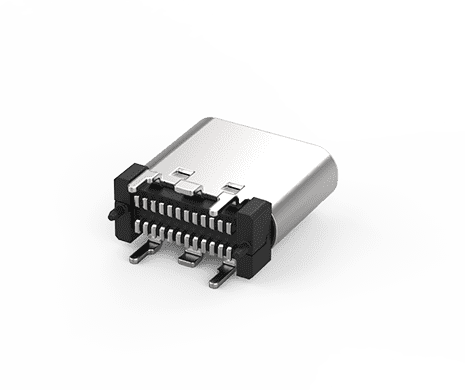

USB Type C Straight Receptacle, 24Pin 8.8H, T/H w/w/SMD, G/F
USB Type-C is a 24-pin USB connector system featuring a reversible design, allowing users to insert the connector without worrying about orientation. ATTEND’s USB Type-C connector series offers PCB designers optimal flexibility and space-saving solutions, supporting high-frequency plug-in cycles with data transfer speeds of up to 10 Gbps and providing 5A charging capability. This ensures reliable, high-performance connections and fast charging for a variety of devices.
USB Type-C is a 24-pin USB connector system featuring a reversible design, allowing users to insert the connector without worrying about orientation. ATTEND’s USB Type-C connector series offers PCB designers optimal flexibility and space-saving solutions, supporting high-frequency plug-in cycles with data transfer speeds of up to 10 Gbps and providing 5A charging capability. This ensures reliable, high-performance connections and fast charging for a variety of devices.
Share:
SPECIFICATION
| Current Rating | 5A max. |
|---|---|
| Voltage Rating | 20V max. |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5 to 20N |
| Extraction Force | 8 to 20N |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217D-AA06 | 101 KB | PDF: Drawing |  |
| 3D | 217D-AA06 | 328 KB | RAR: 3D File | |
