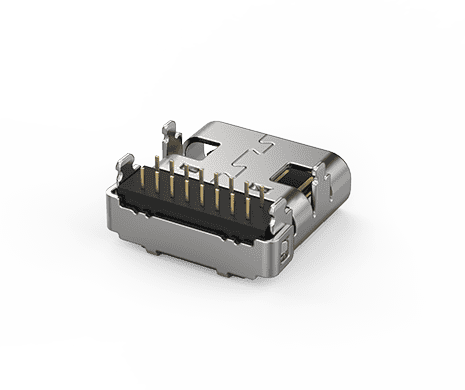

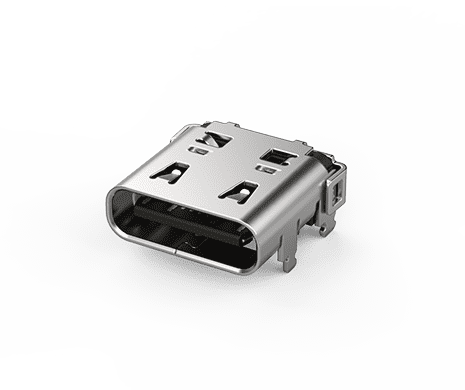

USB Type C Receptacle, 16Pin, DIP
217B-DA01
USB Type C Receptacle, 16Pin Single Row, DIP Type, G/F
ATTEND's 16-pin USB Type-C connector features a dual-sided symmetrical design, allowing users to plug it in without checking the orientation. This special 16-pin design focuses on space-saving and cost efficiency, offering PCB designers a flexible solution. The connector supports high-frequency mating, with data transfer rates up to 480Mbit/s, and provides 5A device charging, making it ideal for various high-efficiency applications such as portable devices, consumer electronics, and industrial uses. This 16-pin USB Type-C ensures versatility and reliability, meeting diverse design needs.
ATTEND's 16-pin USB Type-C connector features a dual-sided symmetrical design, allowing users to plug it in without checking the orientation. This special 16-pin design focuses on space-saving and cost efficiency, offering PCB designers a flexible solution. The connector supports high-frequency mating, with data transfer rates up to 480Mbit/s, and provides 5A device charging, making it ideal for various high-efficiency applications such as portable devices, consumer electronics, and industrial uses. This 16-pin USB Type-C ensures versatility and reliability, meeting diverse design needs.
Share:
SPECIFICATION
| Current Rating | 5A |
|---|---|
| Voltage Rating | 20V |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5 to 20N |
| Extraction Force | 8 to 20N |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217B-DA01 | 93 KB | PDF: Drawing |  |
| 3D | 217B-DA01 | 371 KB | RAR: 3D File | |
