USB Type C Plug, 24Pin Vertical Type, w/SMD

217A-CA06

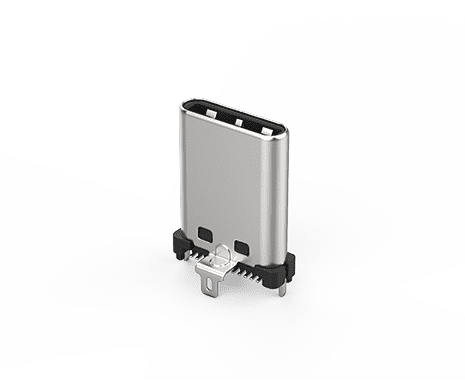

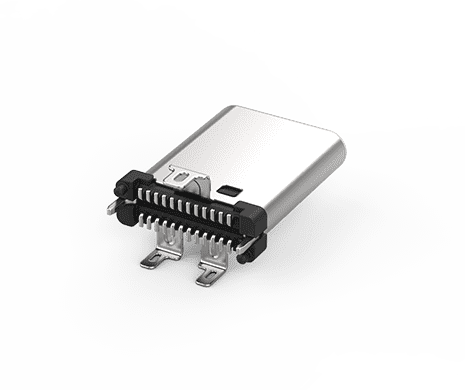

USB Type C Plug, Vertical Type, 24Pin w/SMD, G/F

ATTEND’s USB Type-C Vertical Plug features a compact, space-saving design ideal for vertical installation needs, enhancing durability and efficient data transmission. It supports Power Delivery up to 100W. This plug is particularly suited for industries such as automotive, medical devices, and industrial automation, providing stable connections in space-constrained environments to meet high-performance product design requirements.
Share:

MAIN FEATURES

USB-C Plugs

  • 24-pin USB Type-C plug with reversible vertical design

  • Supports up to 5A (VBUS) and 20V voltage for 100W power delivery

  • Vertical mounting structure optimized for space-constrained designs

  • Reliable electrical performance with low contact resistance (40mΩ)

  • Durable construction with up to 10,000 mating cycles

APPLICATIONS
Applications

  • Consumer electronics devices

  • Industrial automation and control systems

  • Automotive electronics

  • Medical equipment

  • Embedded and compact electronic systems

SPECIFICATION

ELECTRICAL
Current Rating5A for Vbus, 1.25A for Vconn and GND, 0.25A for other pin.
Voltage Rating20V max.
Contact Resistanceinitial 40mΩ, after 50mΩ Max.
Insulation Resistance100MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability10,000 Cycle
Insertion Force5 to 20N
Extraction Forceinitial 8 to 20N, after 6~20N
ENVIRONMENTAL
Operating temperature range-40°C~+85°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing217A-CA06170 KBPDF: DrawingDownload
3D217A-CA06538 KBRAR: 3D FileDownload
