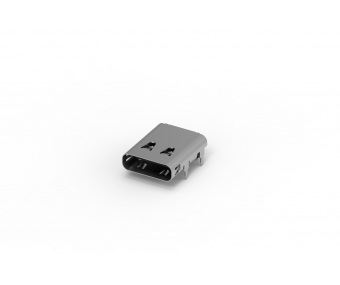

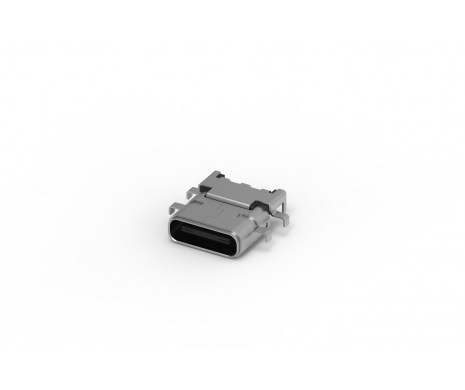

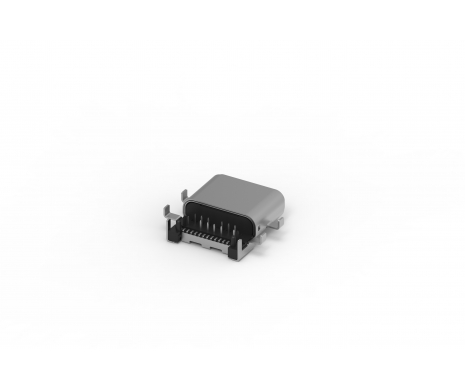

USB Type C Receptacle, R/A, Middle Mount Socket

217C-AA01

USB Type C Receptacle, R/A, Middle Mount Socket

ATTEND’s USB Type-C receptacle features a 24-pin reversible design that enhances usability and ensures reliable connectivity. Designed for PCB applications requiring compact layout and stable performance, the connector supports up to 3A current and 5V AC/DC voltage rating, delivering power up to 15W. With excellent contact reliability, consistent signal integrity, and a durability of 10,000 mating cycles, it is well-suited for consumer electronics, portable devices, and industrial applications.
Share:

MAIN FEATURES

ATTEND USB Type-C Connector


  • Reversible USB Type-C interface for improved user experience

  • Compact mid-mount structure optimized for high-density PCB design

  • Supports up to 15W (5V / 3A) for efficient power delivery

  • Durable construction with 10,000 mating cycles

  • Ensures stable signal integrity and reliable connection

  • Ideal for modern portable and embedded applications



APPLICATIONS
Automotive

  • Rugged environmental

  • Outdoor usage

  • Automotive

  • Industrial

  • Communication

  • Factory automation

  • Home application

  • Marine

  • Data storage

  • Compact handheld devices

SPECIFICATION

ELECTRICAL
Current Rating3A
Voltage Rating5V AC/DC
Contact Resistance40mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability10,000 Cycle
Mating Force5N to 20N
Un-mating Force8N to 20N
ENVIRONMENTAL
Operating temperature range-40°C to +85°C
Storage temperature range-40°C to +85°C
SOLDER ABILITY
Recommended IR Reflow Temperature260°C

DOWNLOAD

CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing217C-AA01295 KBPDF: DrawingDownload
3D217C-AA01533 KBRAR: 3D FileDownload
