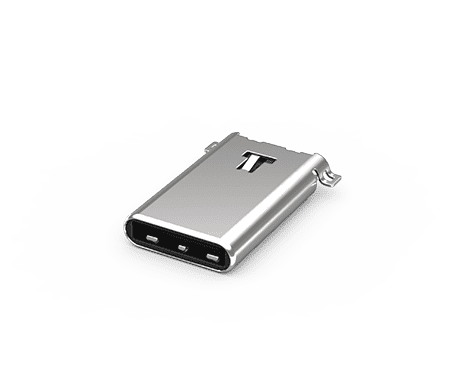

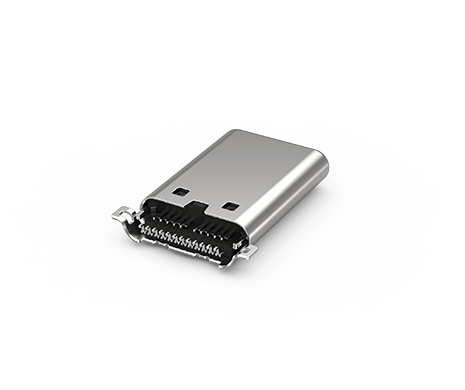

USB Type C Plug, 22Pin Sink Type,w/SMD 30u"
217A-BG04
USB Type C Plug, Sink Type, 22Pin w/SMD, 30u"
ATTEND’s USB Type-C Plug features a robust gold-plated contact area, enhancing conductivity and extending lifespan. It supports Power Delivery up to 100W, making it ideal for demanding applications in industries like automotive, electronics, and industrial equipment. Engineered for durability, ATTEND’s USB Type-C plug ensures stable, dependable connections, especially where high performance and rugged construction are crucial.
ATTEND’s USB Type-C Plug features a robust gold-plated contact area, enhancing conductivity and extending lifespan. It supports Power Delivery up to 100W, making it ideal for demanding applications in industries like automotive, electronics, and industrial equipment. Engineered for durability, ATTEND’s USB Type-C plug ensures stable, dependable connections, especially where high performance and rugged construction are crucial.
Share:
MAIN FEATURES
-
22-pin USB Type-C plug with reversible design
-
Supports up to 5A current and 20V voltage (100W power delivery)
-
Sink type configuration for power receiving applications
-
Gold-plated contacts (30μ") for enhanced conductivity and durability
-
Robust construction with up to 10,000 mating cycles
APPLICATIONS
-
Consumer electronics devices
-
Industrial equipment and embedded systems
-
Power delivery charging devices
-
Automotive electronics applications
-
Portable and handheld devices
SPECIFICATION
| Current Rating | 5A max. |
|---|---|
| Voltage Rating | 20V max. |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5 to 20N |
| Extraction Force | 8 to 20N |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217A-BG04 | 185 KB | PDF: Drawing |  |
| 3D | 217A-BG04 | 1013 KB | RAR: 3D File | |
