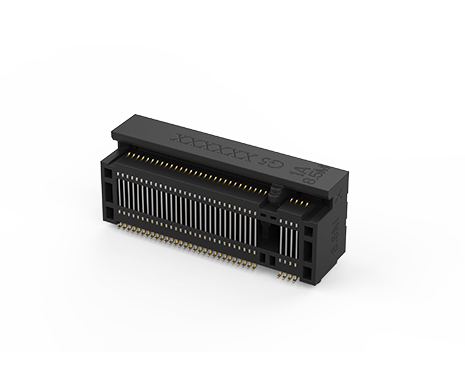

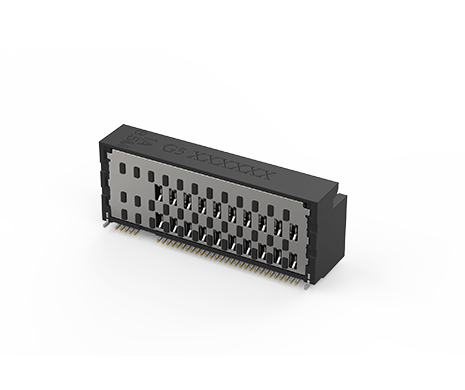

M.2 Gen5 Socket M Key, H=8.5mm
123A-85M02
M.2 Gen5 Socket, H8.5 M Key 0.5 Pitch G/F, Black, Reel
ATTEND's M.2 next generation form factor (NGFF) Gen5 connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
ATTEND's M.2 next generation form factor (NGFF) Gen5 connector is designed for ultra-thin products, offering significant PCB space savings over mini PCIe® connectors. This compact connector enables high-speed data transmission with PCI Express 3.0, SATA 3.0, and USB 3.0 compatibility while meeting PCI-SIG PCIe M.2 specifications. The easy-to-use one-action latch feature minimizes time and cost. The M.2 NGFF series, an evolution from mini and half-mini cards, is optimal for slender platforms, accommodating Wi-Fi, Bluetooth®, wireless WAN, and SSD devices while boosting PCIe Gen 3, SATA 3, SATA I/O, and USB 3.0 performance.
Share:
MAIN FEATURES
- The heights are 4.2mm and 8.5mm
- B, E, and M keying options for module cards
- PCI-SIG PCIe M.2 specification compliant
- 0.5 mm pitch featuring sixty-seven contact points
APPLICATION:
- Data storage
- Servers
- Industrial PCs
- IoT
SPECIFICATION
| Current Rating | 1A (power pin) |
|---|---|
| Voltage Rating | 50VAC |
| Contact Resistance | 55mΩ, Δ20mΩ MAX. |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 300VAC |
| Durability | 60 Cycle |
|---|---|
| Mating Force | 25N max. |
| Un-mating Force | 25N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 123A-85M02 | 380 KB | PDF: Drawing |  |
| 3D | 123A-85M02 | 1634 KB | RAR: 3D File | |
| Datasheet | 123A-XXXX2 Spec | 550 KB | PDF:Spec | |
