USB Type C Receptacle, R/A Hybrid Type
217B-AG01

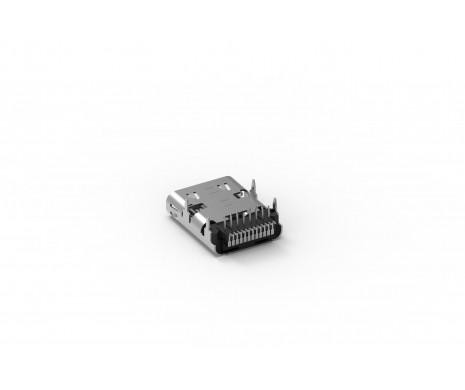

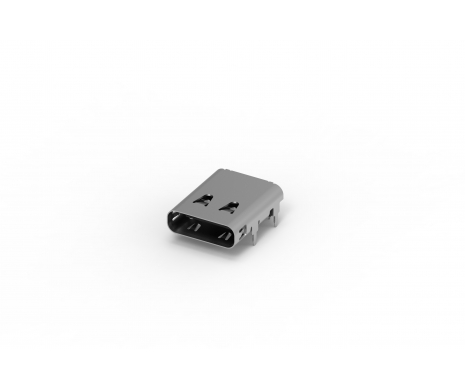

USB Type C Receptacle, Right Angle Hybrid Type, 30u"
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 10GBit/s and allow 500 mA device charging support.
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 10GBit/s and allow 500 mA device charging support.
Share:
MAIN FEATURES
APPLICATIONS
- Rugged environmental
- Outdoor usage
- Automotive
- Industrial
- Communication
- Factory automation
- Home application
- Marine
- Data storage
- Compact handheld devices
SPECIFICATION
| Current Rating | 5A MAX. |
|---|---|
| Voltage Rating | 20V AC/DC |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
| Operating temperature range | -40°C~+105°C |
|---|
| Recommended IR Reflow Temperature | 260°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217B-AG01 | 121 KB | PDF: Drawing |  |
| 3D | 217B-AG01 | 870 KB | RAR: 3D File | |
