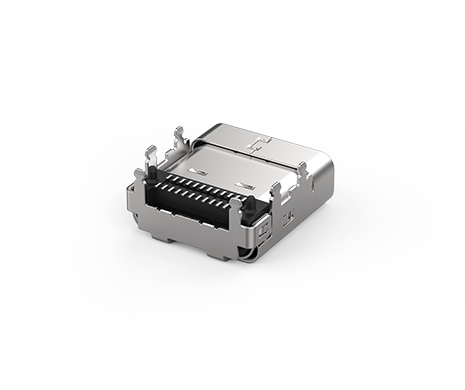

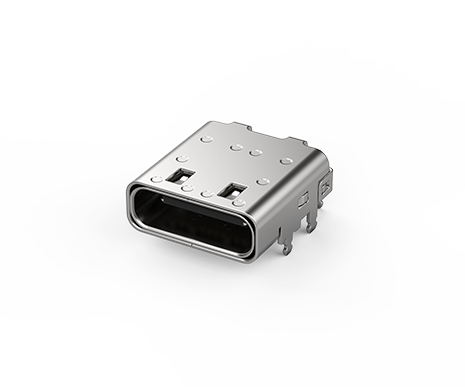

USB4 Gen3 Type C Right Angle Receptacle, w/SMD
217B-BA08
USB4 Gen3 Type C R/A Receptacle, 24 Pin Dual Row w/SMD, CH: 1.78, 1u"
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 40Gbit/s and allow 5A device charging support.
USB Type-C is a 24-pin USB connector system, which is distinguished by its two-fold rotationally-symmetrical connector, which allows users to plug in the connector without checking the front or back. ATTEND USB Type-C connector series is provide the best flexibility and saving solution for PCB designers, featuring the high-frequency mating in data transfer rate up to 40Gbit/s and allow 5A device charging support.
Share:
SPECIFICATION
| Current Rating | 5A for Vbus |
|---|---|
| Voltage Rating | 48 VDC max |
| Contact Resistance | initial 40mΩ, after 50mΩ max. |
| Insulation Resistance | 100MΩ at 300VDC |
| Dielectric Withstanding Voltage | 100VAC 0.5mA leakage current max. |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5 to 20N |
| Extraction Force | 8 to 20N (1 to 30 cycles), 6 to 20N (31 to 10,000 cycles) |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217B-BA08 | 178 KB | PDF: Drawing |  |
| 3D | 217B-BA08 | 373 KB | RAR: 3D File | |
| Datasheet | 217B-BA08 Spec | 400 KB | PDF:Spec | |
