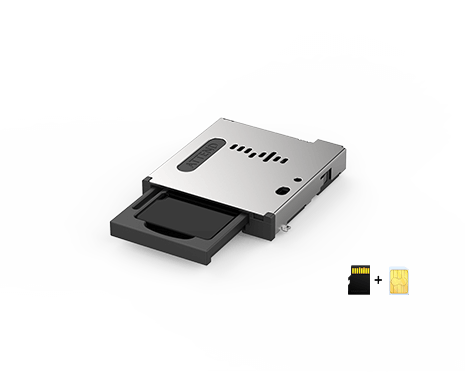

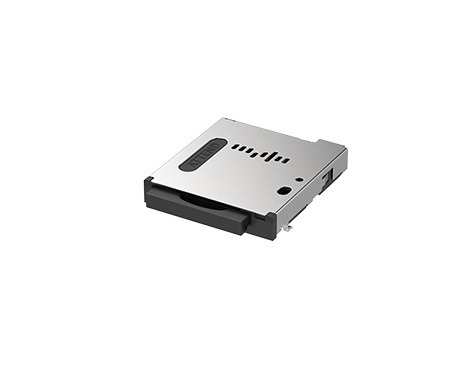

2-in-1 Dual Stack Socket, Push-Push Tray
115U-B200
Micro SD and Micro/Nano SIM Socket, Stack Type, Tray Push-Push, w/Lock and Switch, 10u"
ATTEND's 2-in-1 stacked card connector is designed to enhance space efficiency and functionality in electronic devices. Supporting Micro SD, Nano SIM, and Micro SIM cards, it ensures seamless data transfer and optimal PCB space usage. Ideal for industrial automation, IoT, and rugged equipment, it offers robust performance and versatile configurations, setting a new standard in industrial connectivity solutions.
ATTEND's 2-in-1 stacked card connector is designed to enhance space efficiency and functionality in electronic devices. Supporting Micro SD, Nano SIM, and Micro SIM cards, it ensures seamless data transfer and optimal PCB space usage. Ideal for industrial automation, IoT, and rugged equipment, it offers robust performance and versatile configurations, setting a new standard in industrial connectivity solutions.
Share:

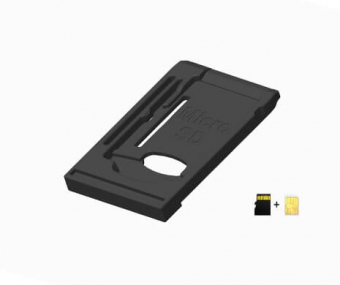

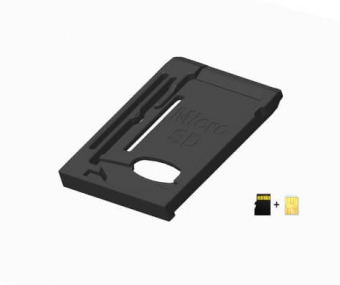

AVAILABLE ACCESSORIES
MAIN FEATURES
- Tray Push-Push Type: SIM + Micro SD connector with separated tray design
- Anti-Reverse Protection: Prevents incorrect tray insertion
- User-Friendly Design: 6mm extended ejection length for easy removal

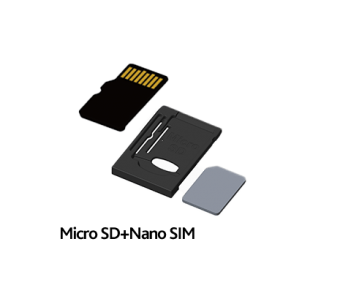

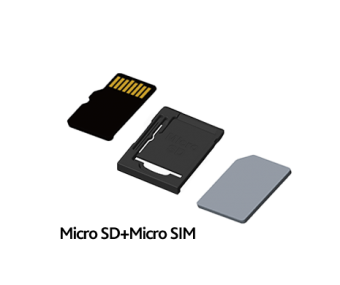

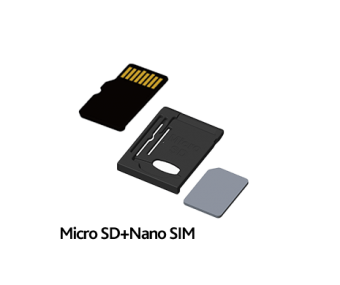

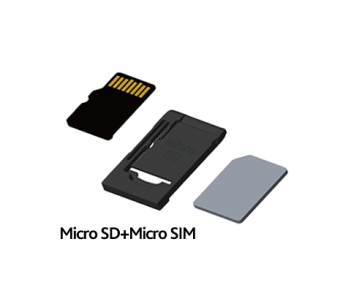

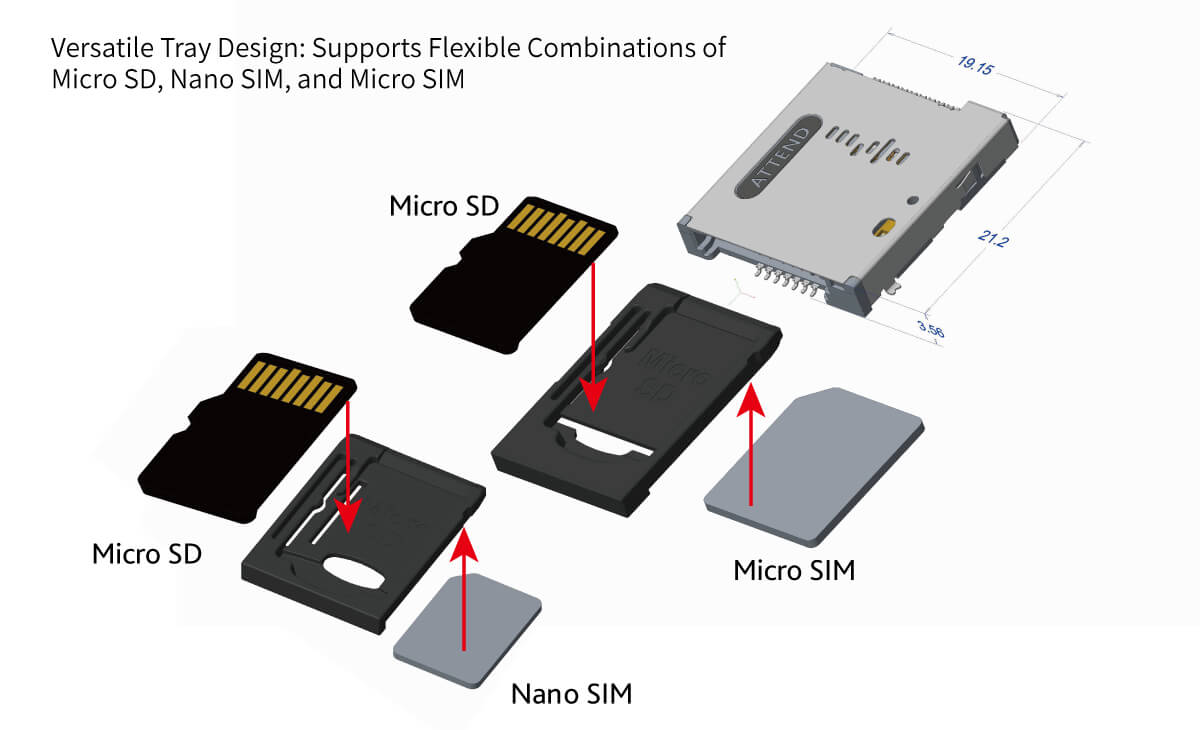

- Versatile Compatibility: Supports Micro SD, Nano SIM, and Micro SIM combinations
- Durable Construction: Tray lock withstands shock; tested for 5,000 mating cycles
- Adaptable: 2mm tray edge suits various panel/casing designs
- Robust Performance: Operates from -40°C to +105°C; passed EN60721-3-5 Class 5M3 vibration & Level II shock tests
Application:
- Telematics and V2X
- IIoT
- Smart meter
- Gateway and Router
- M2M
- Mobile devices
- Security and surveillance
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 10V DC |
| Contact Resistance | 100mΩ Max. |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 5,000 cycles |
|---|---|
| Contact Normal Force | 0.5N Max. per pin |
| Tray Lock Force | 3N Min. |
| Operating temperature range | -40°C~+105°C |
|---|---|
| Storage temperature range | - 40°C~+85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|
