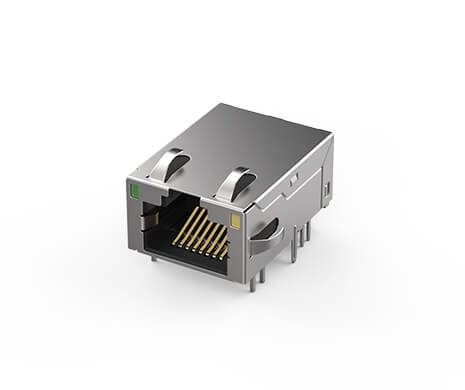

PoE++ Jack 60W, 2.5G BASE-T, Latch up w/LED, 57V 720mA, 30u”
214A-R333
RJ45 PoE++ Type3 Jack, 1x1 Port, R/A Latch UP w/LED, 57V 720mA, 30u", 2.5G BASE-T
ATTEND‘s RJ45 Ethernet jacks with Power over Ethernet (PoE) provide single port,10/100 to 10G of speed, 60 W of power and integrated connector modules (ICMs). Comply with the IEEE 802.3bt standard, supporting the maximum of 60W power and are designed to function across a broad industrial temperature range of -40℃ to +85℃, making them ideal for the requirements of a wide range of applications.
ATTEND‘s RJ45 Ethernet jacks with Power over Ethernet (PoE) provide single port,10/100 to 10G of speed, 60 W of power and integrated connector modules (ICMs). Comply with the IEEE 802.3bt standard, supporting the maximum of 60W power and are designed to function across a broad industrial temperature range of -40℃ to +85℃, making them ideal for the requirements of a wide range of applications.
Share:
MAIN FEATURES
- Compatibility: Meets industry norms for straightforward integration.
- Versatility: Operates as Power Sourcing Equipment (PSE) or Powered Device (PD).
- Network Integration: Seamlessly compatible with existing Ethernet networks.
- Configurability: Provides options from 10/100BASE-T to 10G BASE-T.
- Reliability: Ensures consistent performance in harsh conditions from -40℃ to +85℃.
- Durability: Engineered for next-gen PoE applications requiring over 30W.
APPLICATIONS
- Smart Buildings: Facilitates enterprise IoT integrations like connected LED lighting.
- Digital Security: Powers PTZ cameras for enhanced urban security.
- Kiosks: Supports interactive and multimedia kiosk systems.
- Point of Sale (POS) Terminals: Enhances reliability and functionality in retail settings.
- Thin Clients: Enables more efficient network computing devices.
- IOT: Improves the deployment and functionality of network access points.
SPECIFICATION
| Inductance At 100 KHz, 100 mV 8mADC Bias | 180 uH Min. |
|---|---|
| Insertion Loss | -1.0 dB Max. @ 1-125 MHz |
| Return Loss | -17dB Min. @ 1-40MHz |
| Return Loss | -12dB Min. @ 40-80MHz |
| Return Loss | -11dB Min. @ 80-100MHz |
| Return Loss | -10dB Min. @ 100-125MHz |
| Cross Talk | 1-100MHz -30dB Min. 100-125MHz -27.5dB Min. |
| Common Mode Rejection | -30dB Min. @1-125MHz |
| Isolation Voltage | 2250Vrms / 60 Seconds |
| Voltage Rating | 57VDC Max. |
| Current Rating | 720mADC Max. |
| Turns Ratio | @100KHz, 0.1V: 1:1±2% |
| Operating Life | 750 Cycles Min. |
|---|
| Storage | -40℃~+85℃ |
|---|---|
| Operation | -40℃~+85℃ |
| Soldering Temperature | 255~265℃ (5~10 Seconds) |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Datasheet | 214A-60W Series Spec | 1013 KB | PDF:Spec |  |
| Drawing | 214A-R333 | 128 KB | PDF: Drawing | |
| 3D | 214A-R333 | 892 KB | RAR: 3D File | |
| Datasheet | 214A Packaging | 206 KB | PDF File | |
