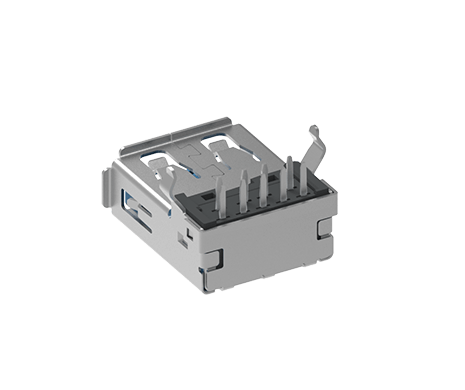

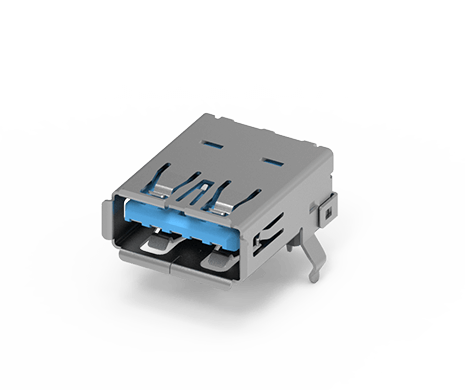

USB3.0 A Type, R/A DIP Type
209B-DG11
USB 3.0 A Type Receptacle, R/A DIP, 30u" Pd-Ni + 2u" Gold, Shell Kink
USB connectors revolutionized industries with hot-swapping and Plug-and-Play features, transforming device interaction. USB technology has evolved for high-speed data, power delivery, and versatility. ATTEND provides a full range of USB connectors focused on stability, durability, and cost-effectiveness, meeting the demands of modern devices.
USB connectors revolutionized industries with hot-swapping and Plug-and-Play features, transforming device interaction. USB technology has evolved for high-speed data, power delivery, and versatility. ATTEND provides a full range of USB connectors focused on stability, durability, and cost-effectiveness, meeting the demands of modern devices.
Share:
SPECIFICATION
| Current Rating | 1.8AMP |
|---|---|
| Voltage Rating | 30VAC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 1,500 Cycle |
|---|---|
| Insertion Force | 35N max |
| Extraction Force | 10N min |
| Operating temperature range | -55°C~+85°C |
|---|---|
| Storage temperature range | - 55°C~+85°C |
| Recommended IR Reflow Temperature | 260°C ±5 sec |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 209B-DG11 | 83 KB | PDF: Drawing |  |
| 3D | 209B-DG11 | 336 KB | RAR: 3D File | |
