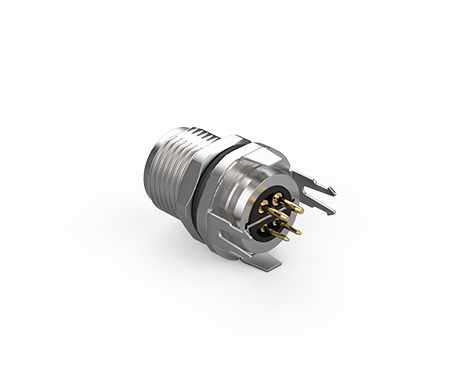

SPE M8 4 Pin Hybrid Jack, Straight, w/GND, 30u"

Name: 229B-04FS01
Brand: ATTEND
Availability: InStock

229B-04FS01

SPE M8 4 Pin Hybrid Jack, Straight, w/GND, 30u"

ATTEND's 229B-04FS01 M8 4-Pin Hybrid SPE Connector features a straight design with grounding, integrating Single Pair Ethernet (SPE) data transmission and power delivery into a compact, industrial-grade interface. Designed in accordance with IEC 63171-6 specifications, it provides a reliable connectivity solution for industrial automation, robotics, and smart manufacturing applications.

Featuring separate signal and power contacts, the connector supports current ratings of up to 4 A for signal contacts (Pins 1 & 2) and 8 A for power contacts (Pins 3 & 4), with a rated voltage of 60 VDC. Its straight configuration supports vertical PCB integration, making it suitable for industrial equipment requiring reliable data and power connectivity.

Mating Parts and Available Accessories

【Cap】229-0001

MAIN FEATURES

229B-04FS04 M8 4 Pin Hybrid SPE Connector Features

M8 4 Pin Hybrid straight jack design integrates data transmission and power delivery into a single interface
Compliant with IEC 63171-6 specifications
Supports IEEE 802.3 Single Pair Ethernet (SPE T1) communication
Current rating: up to 4 A for signal contacts (Pins 1 & 2) and 8 A for power contacts (Pins 3 & 4)

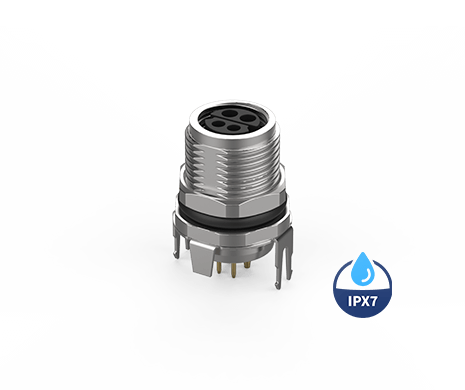

IP67-rated protection when properly mated with compatible connectors
Rated voltage: 60 VDC
Operating temperature range: -40°C to +85°C
Durability: 100 mating cycles

APPLICATIONS

Industrial Automation and Control Systems
Robotics / AGV / AMR Systems
Machine Vision
Smart Factories and Building Automation
Industrial Sensors and Actuators
Railway and Transportation Systems

SPECIFICATION

ELECTRICAL
Current Rating	Pin 1&2 4A, Pin 3&4 8A
Voltage Rating	60VDC
Contact Resistance	20mΩ max.
Shell Resistance	100mΩ max.
Insulation Resistance	500MΩ
Voltage Proof	1,000VAC
