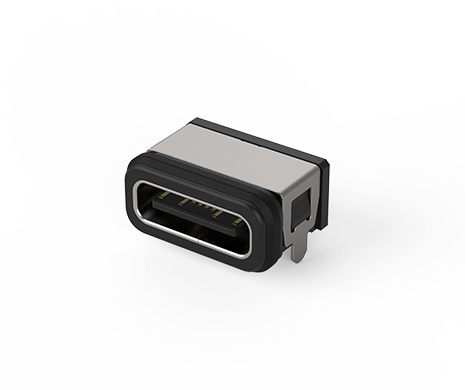

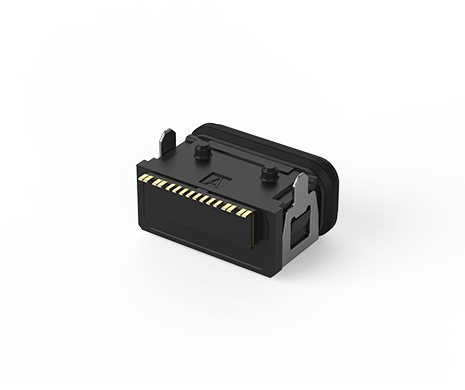

Waterproof USB Type C, 16 Pin Single Row,SMD Type
217B-CA04
USB Type C Receptacle, 16 Pin Single Row, SMD Type, IPX8 Waterproof, w/ Oring, 3u"

ATTEND's waterproof USB Type-C connector features industry-leading IPX8 waterproof performance, complying with IEC 60529 standards. Specifically designed for harsh environmental conditions with moisture, these connectors ensure reliable performance. They achieve impressive data transfer rates of 10 Gbps and support high-speed communication and power delivery (20V, 5A). ATTEND's USB Type-C connector series provides the most flexible and cost-effective solution for PCB designers.
Share:
MAIN FEATURES
Waterproof USB Type-CA

  • IPX7 and IPX8 waterproof variations are available
  • Compatible with 10 Gbps high-speed data communication
  • Operating temperature range: -40°C to +85°C
  • Rated for 1,000 mating cycles
  • Design to secure mechanical strength of both receptacle and plug
APPLICATIONS
Automotive
  • Rugged environmental
  • Outdoor usage
  • Automotive
  • Industrial
  • Communication
  • Factory automation
  • Home application
  • Marine
  • Data storage
  • Compact handheld devices
SPECIFICATION
ELECTRICAL
Current Rating5A for Vbus
Voltage Rating20VAC max
Contact Resistance40mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage100VAC
MECHANICAL
Durability10,000 Cycle
Insertion Force5N to 20N
Extraction Force8N to 20N
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing217B-CA04128 KBPDF: DrawingDownload
3D217B-CA04378 KBRAR: 3D FileDownload
Datasheet217B-CA04337 KBPDF:SpecDownload
