Waterproof IP67, USB Type C Mid-Mount Hybrid, 24Pin, 15u"
217C-AE05

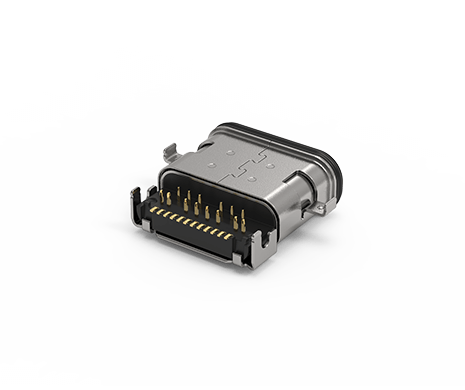

USB Type C Mid-Mount Hybrid Receptacle, 24Pin Waterproof IP67, 15u"

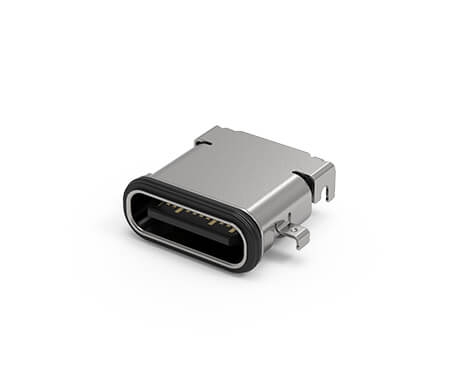

ATTEND's 217C-AE05 Waterproof USB Type-C Receptacle features a 24-pin mid-mount hybrid design with IP67-rated waterproof protection when installed with the specified O-ring (P/N: 217-0007) under appropriate sealing conditions. Its compact configuration enables space-efficient PCB integration for industrial equipment, outdoor electronics, and other applications requiring reliable USB Type-C connectivity.
The connector features a rated current of 5 A and a rated voltage of 20 VDC, with contact-specific current limits defined in the product drawing. Designed for up to 10,000 mating cycles, it operates over a temperature range of -40°C to +85°C, offering reliable data and power connectivity for demanding environments.
ATTEND's 217C-AE05 Waterproof USB Type-C Receptacle features a 24-pin mid-mount hybrid design with IP67-rated waterproof protection when installed with the specified O-ring (P/N: 217-0007) under appropriate sealing conditions. Its compact configuration enables space-efficient PCB integration for industrial equipment, outdoor electronics, and other applications requiring reliable USB Type-C connectivity.
The connector features a rated current of 5 A and a rated voltage of 20 VDC, with contact-specific current limits defined in the product drawing. Designed for up to 10,000 mating cycles, it operates over a temperature range of -40°C to +85°C, offering reliable data and power connectivity for demanding environments.
Share:
Mating Parts and Available Accessories
MAIN FEATURES
.png)
- IP67-rated waterproof USB Type-C receptacle when used with the specified O-ring (P/N: 217-0007) under appropriate installation conditions
- 24-pin mid-mount hybrid design for space-efficient PCB integration
- Rated current: 5 A, subject to contact-specific limits
- Rated voltage: 20 VDC
- 15 µin gold-plated contacts
- Durability: 10,000 mating cycles
- Operating temperature range: -40°C to +85°C
APPLICATIONS

- Rugged Industrial Equipment
- Outdoor Electronic Devices
- Automotive Electronics
- Industrial Automation
- Communication Equipment
- Marine Electronics
- Portable and Handheld Devices
- Embedded Computing Systems
SPECIFICATION
| Current Rating | 5 A VBUS: 1.5 A GND: 1.25 A Max. Other Pins: 0.25 A |
|---|---|
| Voltage Rating | 20 VDC |
| Contact Resistance | 40 mΩ |
| Insulation Resistance | 100 MΩ |
| Dielectric Withstanding Voltage | 100 VAC |
| Durability | 10,000 Mating Cycles |
|---|---|
| Insertion Force | 5 to 20 N |
| Extraction Force | 8 to 20 N |
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Storage Temperature Range | -40°C to +85°C |
| Recommended IR Reflow Temperature | 260°C |
|---|

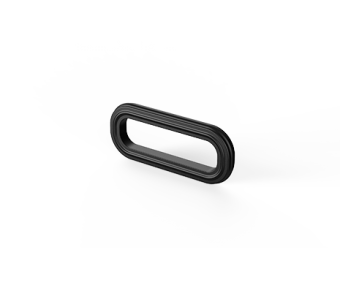

Installation Note: This connector must be used with the specified O-ring (P/N: 217-0007). IP67 protection is subject to proper assembly and sealing conditions.
