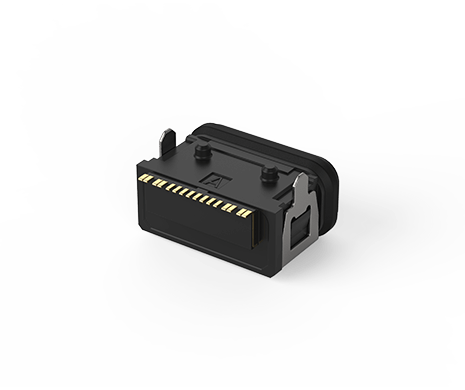

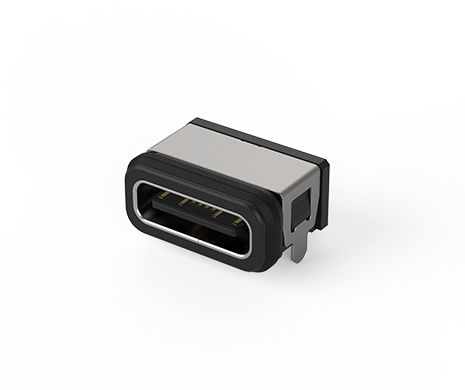

Waterproof USB Type C Receptacle, 16 Pin Single Row
217B-CA04
USB Type C Receptacle, 16 Pin Single Row, SMD Type, IPX8 Waterproof, w/ Oring, 3u''
ATTEND's waterproof USB Type-C connectors, rated IPX8, support 480 Mbps data transfer and 20 V, 5 A power delivery. Designed for industrial and automotive use, they operate in temperatures from -40°C to +85°C and offer up to 1,000 mating cycles, ensuring durability and reliability in harsh environments.
ATTEND's waterproof USB Type-C connectors, rated IPX8, support 480 Mbps data transfer and 20 V, 5 A power delivery. Designed for industrial and automotive use, they operate in temperatures from -40°C to +85°C and offer up to 1,000 mating cycles, ensuring durability and reliability in harsh environments.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
MAIN FEATURES
.png)
A- IPX7 and IPX8 waterproof variations are available
- 16-pin configuration supports USB-C 2.1 and USB 2.0, with up to 480 Mbps data rate.
- Operating temperature range: -40°C to +85°C
- Rated for 1,000 mating cycles
- Design to secure mechanical strength of both receptacle and plug
APPLICATIONS
- Rugged environmental
- Outdoor usage
- Automotive
- Industrial
- Communication
- Factory automation
- Home application
- Marine
- Data storage
- Compact handheld devices
SPECIFICATION
| Current Rating | 5A for Vbus |
|---|---|
| Voltage Rating | 20VAC max |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 100VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 5N to 20N |
| Extraction Force | 8N to 20N |
| Operating temperature range | -40°C~+85°C |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 217B-CA04 | 128 KB | PDF: Drawing |  |
| 3D | 217B-CA04 | 378 KB | RAR: 3D File | |
| Datasheet | 217B-CA04 | 337 KB | PDF:Spec | |
