M12 A-Code, Female For Field Installable, Plastic
216A-XXFF1
M12 A-Code Plug for Cable, Female For Field Installable, Plastic, G/F

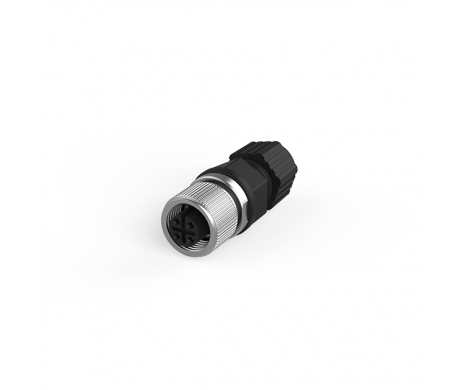

ATTEND’s M-series Field-Installable Plastic Circular Connector is a solder-type connector. It boasts a patented design featuring a removable insert/shell, which simplifies field rework.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND’s M-series Field-Installable Plastic Circular Connector is a solder-type connector. It boasts a patented design featuring a removable insert/shell, which simplifies field rework.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Pin Assignment | Pin Count |
|---|---|---|
| 216A-04FF1 |  | 4Pin |
| 216A-05FF1 |  | 5Pin |
| Part Number | Pin Assignment | Pin Count |
|---|---|---|
| 216A-08FF1 |  | 8Pin |
| 216A-12FF1 |  | 12Pin |
SPECIFICATION
| 4 Pin Current Rating | 4A |
|---|---|
| 4 Pin Voltage Rating | 250V |
| 5 Pin Current Rating | 4A |
|---|---|
| 5 Pin Voltage Rating | 60V |
| 8 Pin Current Rating | 2A |
|---|---|
| 8 Pin Voltage Rating | 30V |
| 12 Pin Current Rating | 1.5A |
|---|---|
| 12 Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
