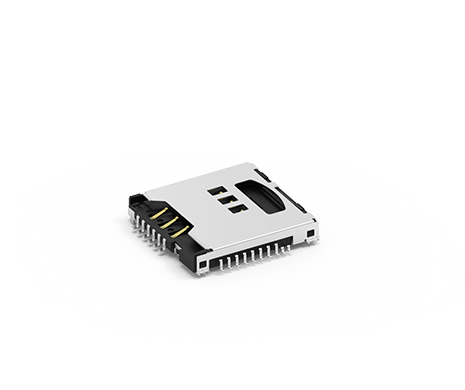

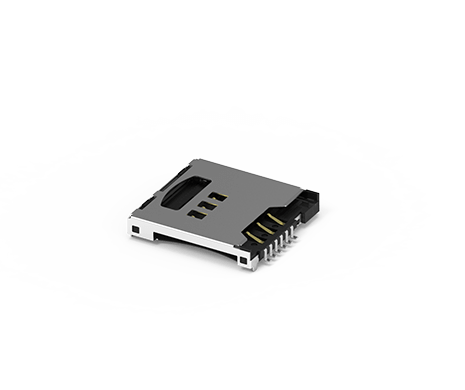

Micro SD with SIM Card Socket, Push-Push Type
112G-TA00-R
Micro SD with SIM Card connector, Push-Push Type w/switch, GF
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
Share:
MAIN FEATURES

- Various types available, including push-push, push-pull, reverse, and hinge
- Meet SDA standards for known compatibility and reliability
- Ultra-high-speed interface compatible (UHS-I)
- Write-protect switch optional
- Card detection switch optional

- Embedded systems
- Machine vision systems
- IIoT
- Infotainment
- Action Cameras
SPECIFICATION
Current | 0.5A Max |
---|---|
Voltage | 100V AC |
Contact Resistance | 40mΩ |
Voltage Proof | 500V AC |
Insulation Resistance | 1,000MΩ |
Card Insertion/Withdraw Force | 13.8N Max |
---|---|
Push-In Strength | 19.6N |
Durability | 10,000 Cycles |
Insulator | LCP Black |
---|---|
Shell | SUS304 |
Contact | Copper Allor |
Contact area | Gold Flash Plating |
