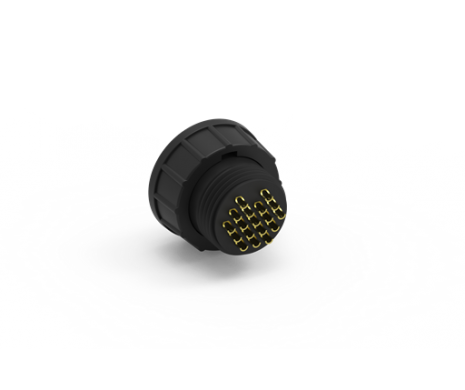

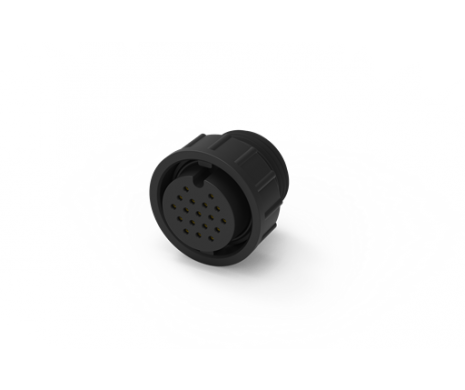

D Size Conn., Solder Pin, F Skt F, Overmolding Cable Lock Bayonet
227D-MFF0
Drawing Number:227D-MFF0
D Size Conn., Solder Pin, F Skt F, Overmolding Cable Lock Bayonet

ATTEND's 227 series all-plastic circular connectors are crafted from UL94 V-0 rated PA66 material, providing significant advantages in various critical applications where space and reliability are paramount. Designed to endure an operating temperature range of -40°C to +85°C, these connectors excel in challenging environments. With a capacity for up to 1,000 mating and unmating cycles, they ensure long-lasting durability. Additionally, their gold-plated contacts deliver superior electrical performance. Featuring a corrosion-resistant, all-plastic design and an IP67 protection rating, these connectors are especially well-suited for applications in vibration-prone environments, offering a stable and secure connection.
MAIN FEATURES
Application Drawing
  • Compact all-plastic design with robust bayonet locking
  • Operating temperature range: -40°C to +85°C
  • Rated for 1,000 mating cycles
  • Corrosion-resistant gold-plated contacts
  • Vibration-resistant with IP67 protection rating
industrial device
APPLICATION:
  • Agriculture
  • Aviation
  • Medical devices
  • Industrial automation
Plastic A/B/C/D Size Instructions
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
             227D-04F02             Pin Assignment 4pin4Pin20A
227D-05F02Pin Assignment 5pin5Pin20A
227D-07F027Pin20A
227D-18F16Pin Assignment 18pin18Pin5A
227D-20F01Pin Assignment 20pin20Pin5A
Product Specification Comparison Table
Part NumberPin AssignmentPin CountCurrent Rating
227D-21F01Pin Assignment21Pin2A
227D-22F01Pin Assignment22Pin2A
227D-24F01Pin Assignment24Pin2A
227D-25F01Pin Assignment25Pin2A
SPECIFICATION
ELECTRICAL
Current Rating2A/ 5A/ 20A per pin
Contact Resistance10mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability1,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing227D-MFF0177 KBPDF: DrawingDownload
3D227D-MFF0580 KBRAR: 3D FileDownload
